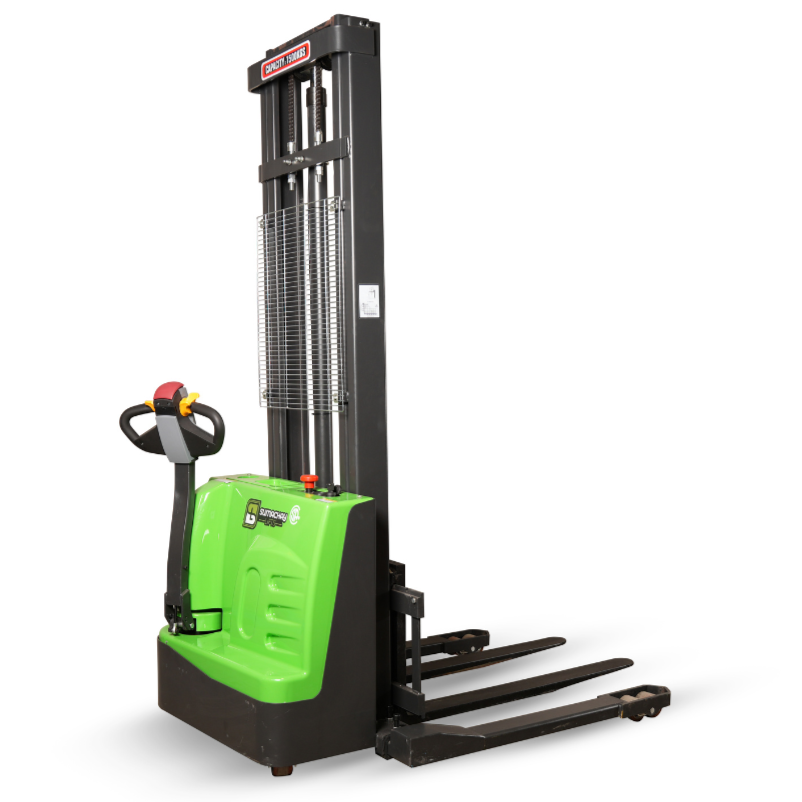

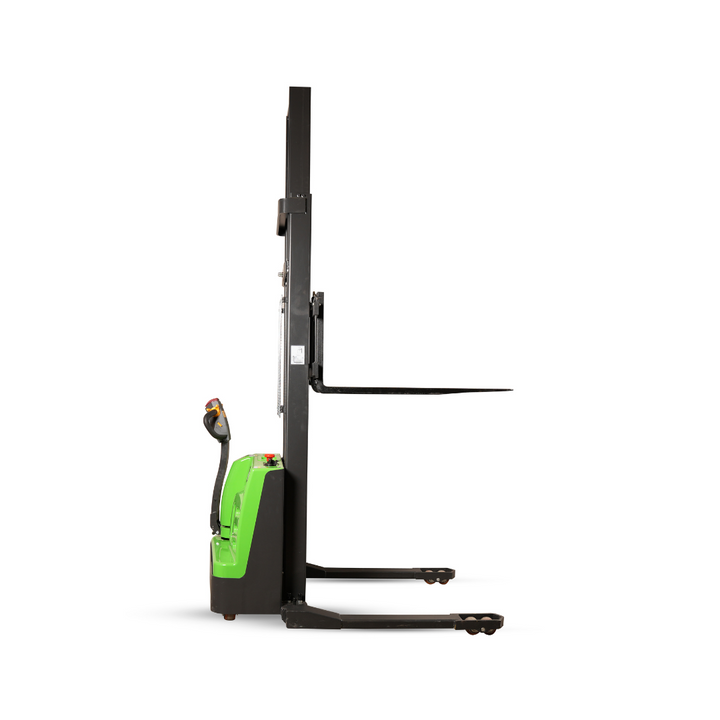

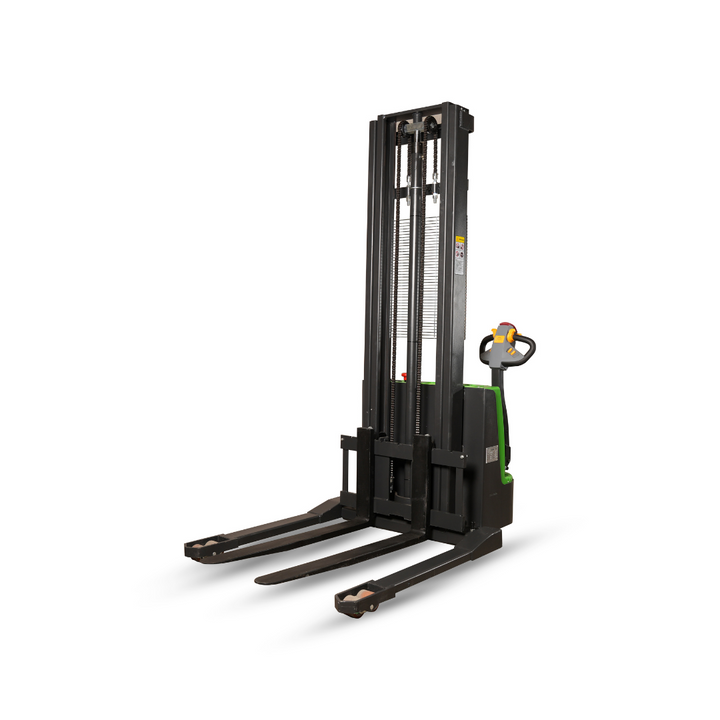

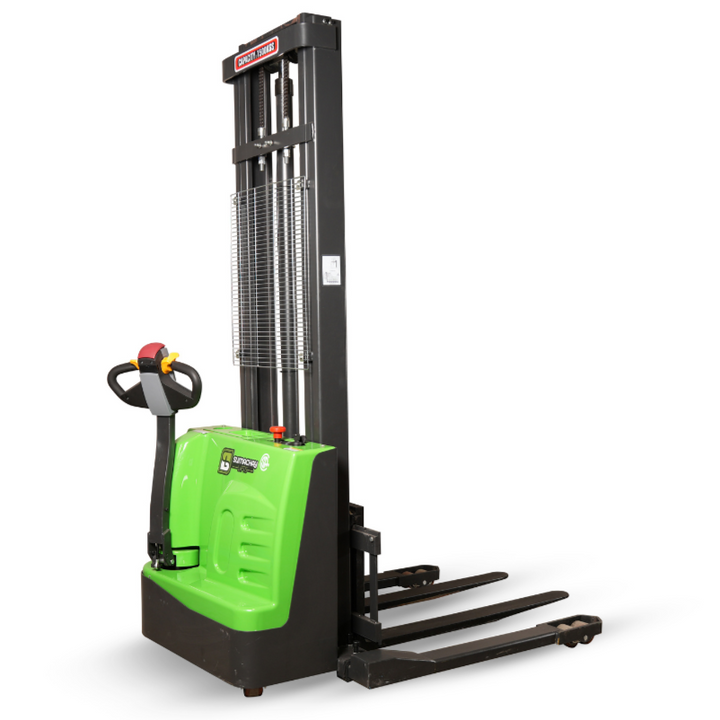

SST15 3300 lb Electric Pallet Stacker – 138″ Lift
Prefer a formal quote? Get it by email.
Designed to push your warehouse operations to new levels of efficiency, the SST15G Electric Pallet Stacker is an advanced version of the original, packed with even more power and versatility. Assembled in Canada, this heavy-duty stacker is equipped with a powerful 100Ah lithium-ion battery, delivering exceptional performance and reliability. Whether you're lifting, stacking, or moving, the SST15 handles loads up to 1500kg with ease, now reaching an impressive lifting height of 3.5 meters (137 inches).
Key Features:
-

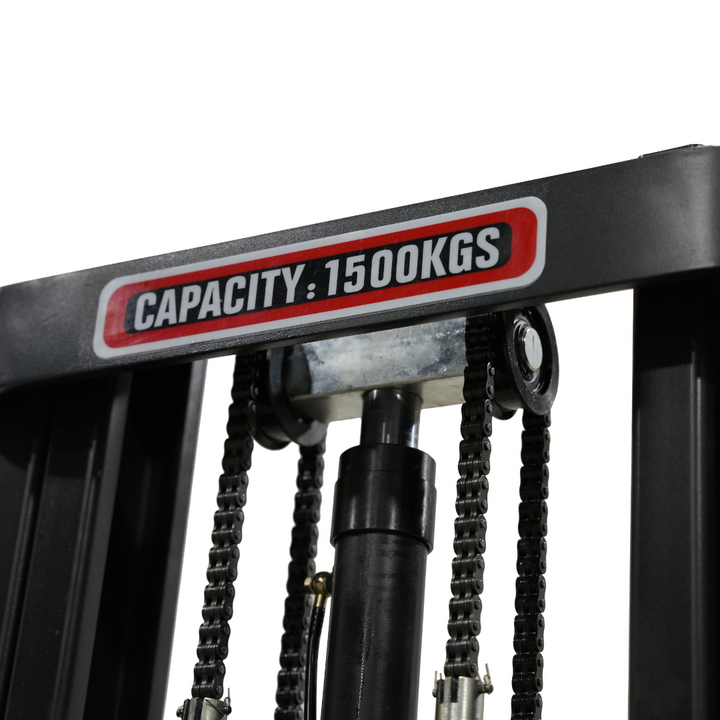

1500kg Lifting Capacity: Handle your heaviest loads with confidence, thanks to the robust construction of the SST15.
-

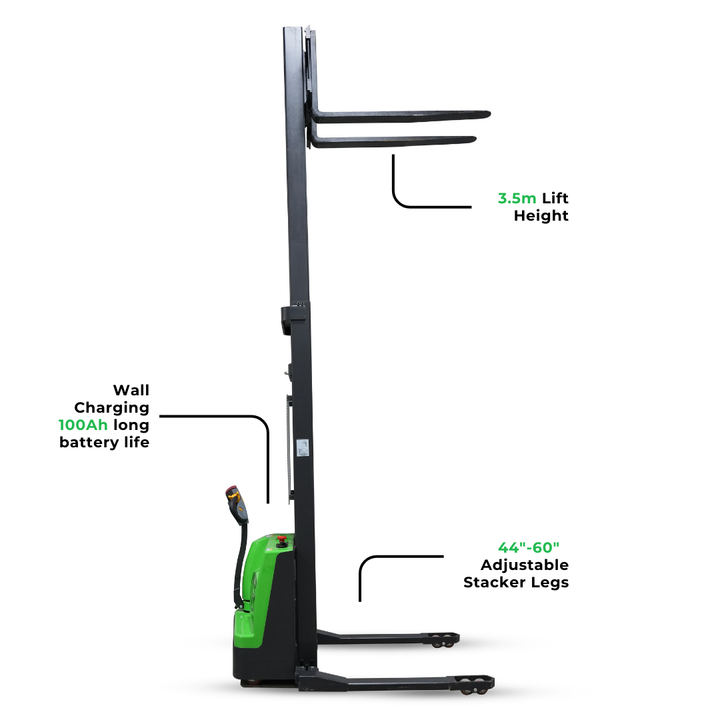

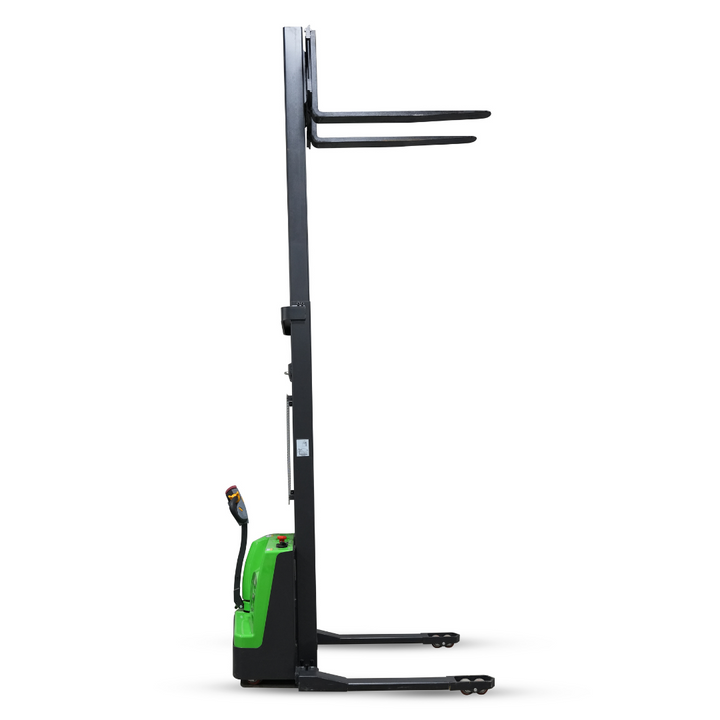

3.5m Lifting Height: Reach new heights with the enhanced lifting height of 3.5 meters (137.8 inches), making it perfect for high-stack storage in warehouses and distribution centers.
-
100Ah Lithium-ion Battery: Experience prolonged performance with the reliable 100Ah lithium-ion battery, ensuring minimal downtime for charging and long-lasting power.
-
Larger 24V 30A Charger: The SST15G now includes a larger 24V 30-amp charger, offering faster and more efficient recharging to keep your operations running smoothly.
-

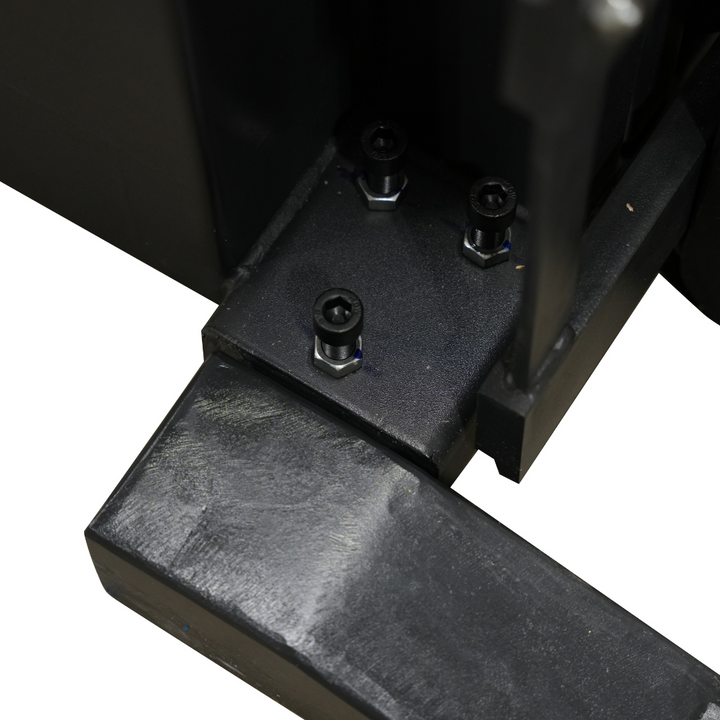

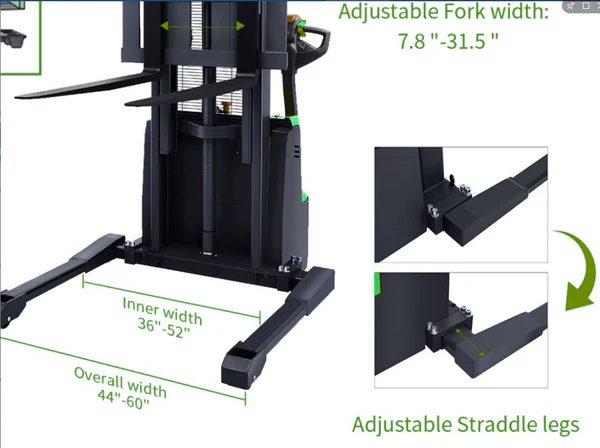

Easily Movable Support Legs: The redesigned support legs are easy to maneuver, providing additional flexibility for navigating tight or awkward spaces with precision.
-

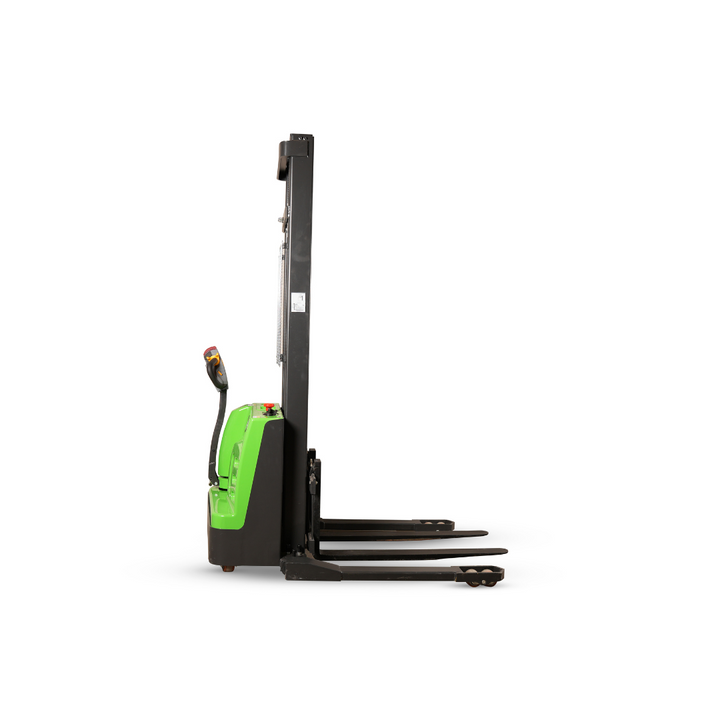

Small Turning Radius: Maintain full control in crowded warehouse aisles, thanks to the small turning radius, allowing for superior maneuverability.
-

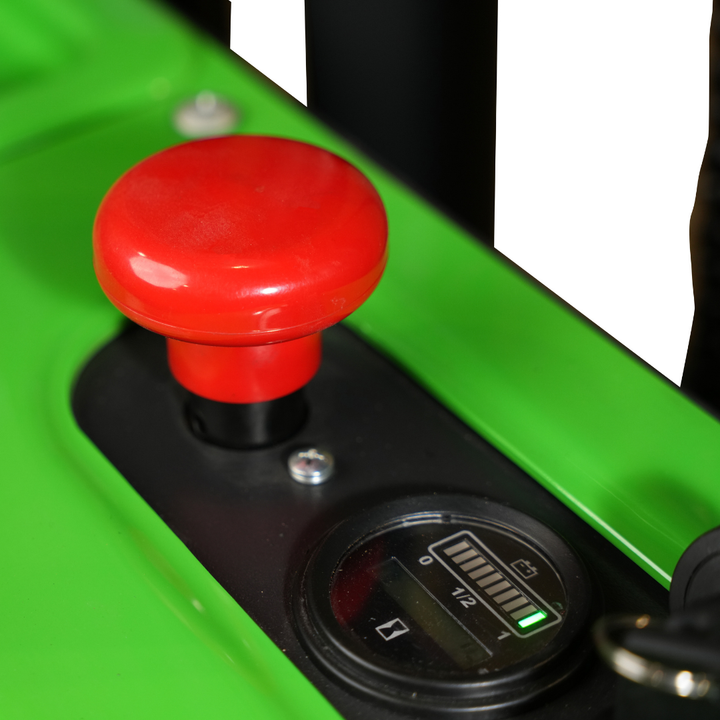

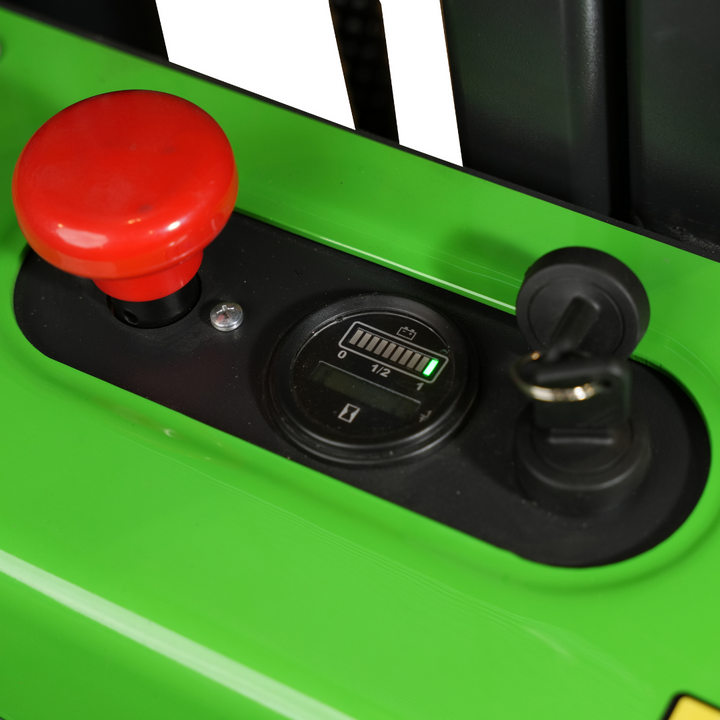

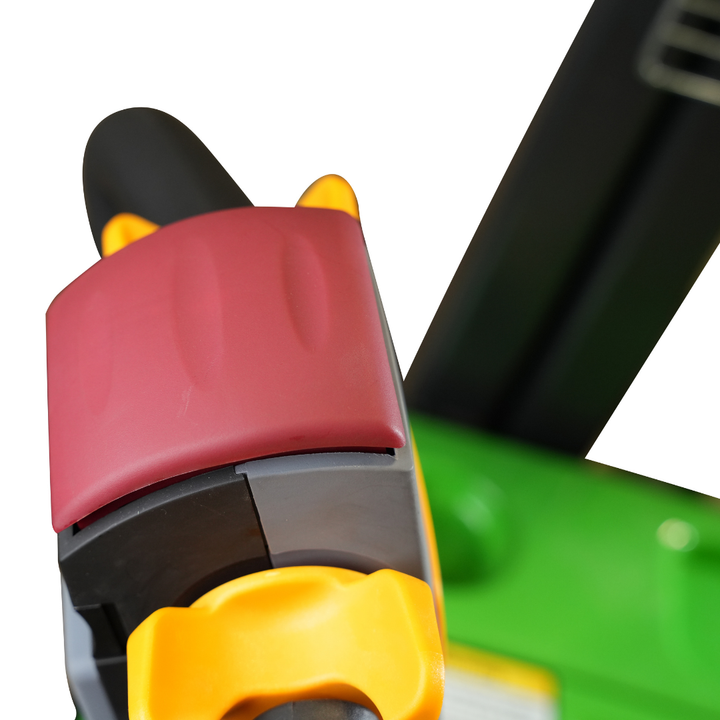

Automatic Safety Features: Prioritize workplace safety with automatic safety mechanisms, such as a safety release braking system, to ensure secure operation.
-

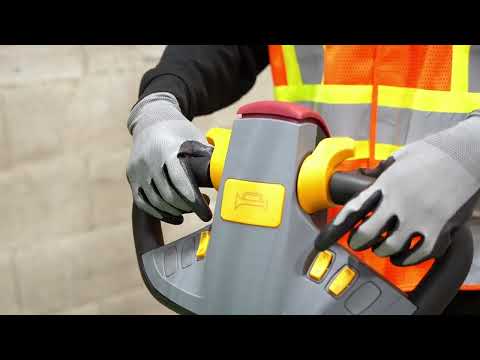

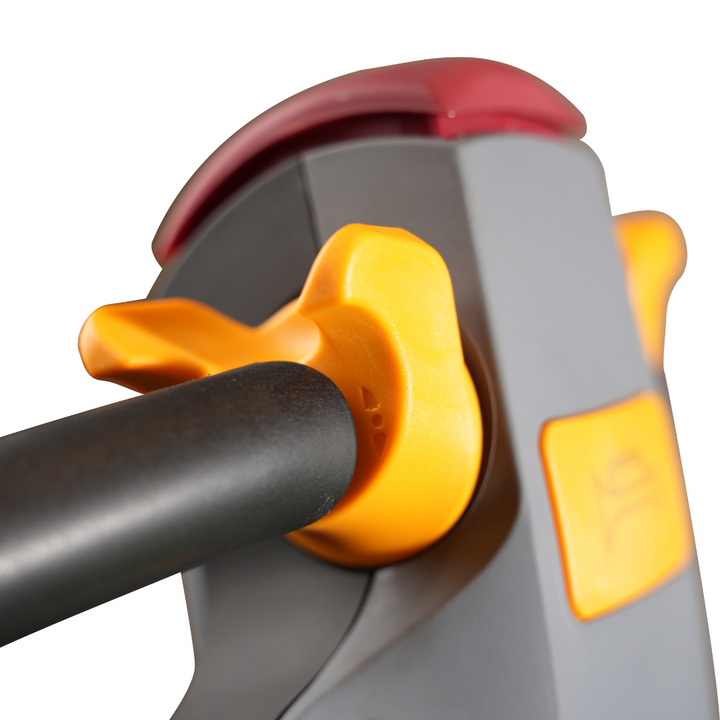

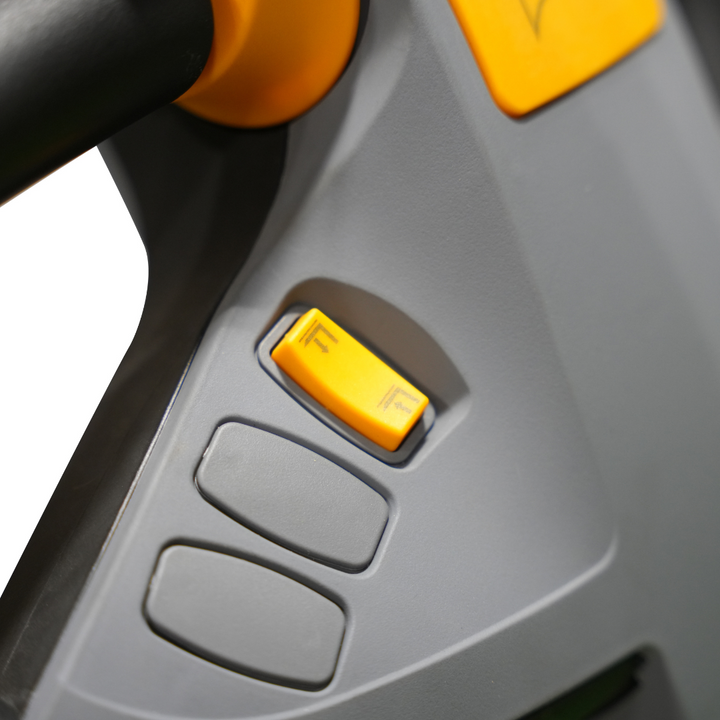

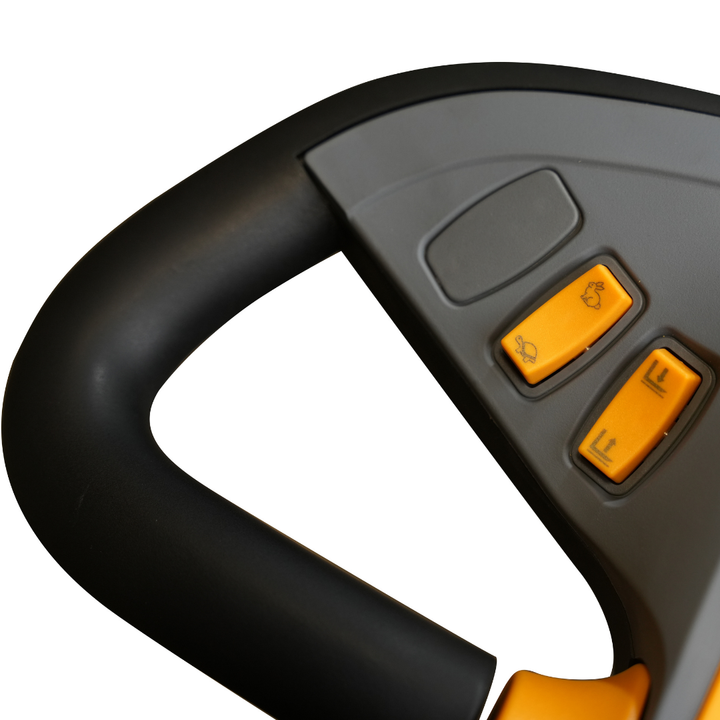

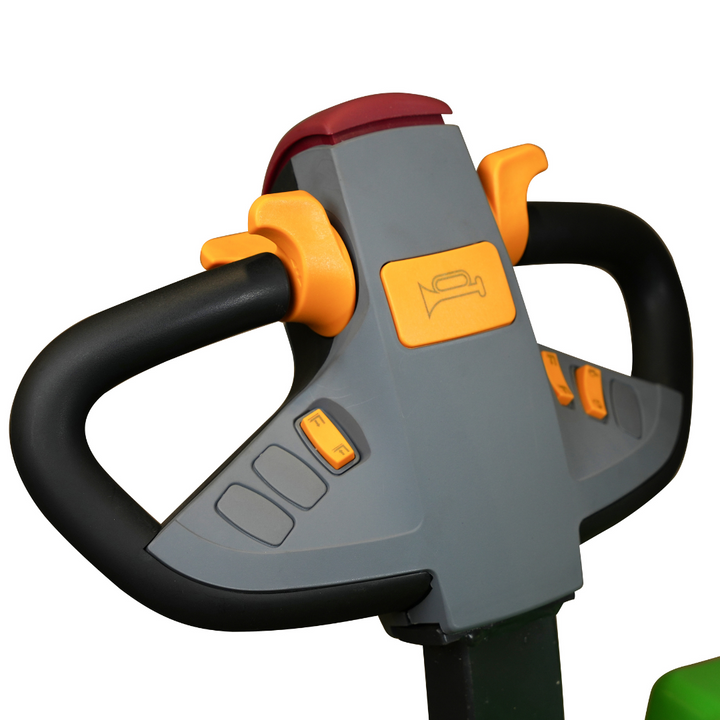

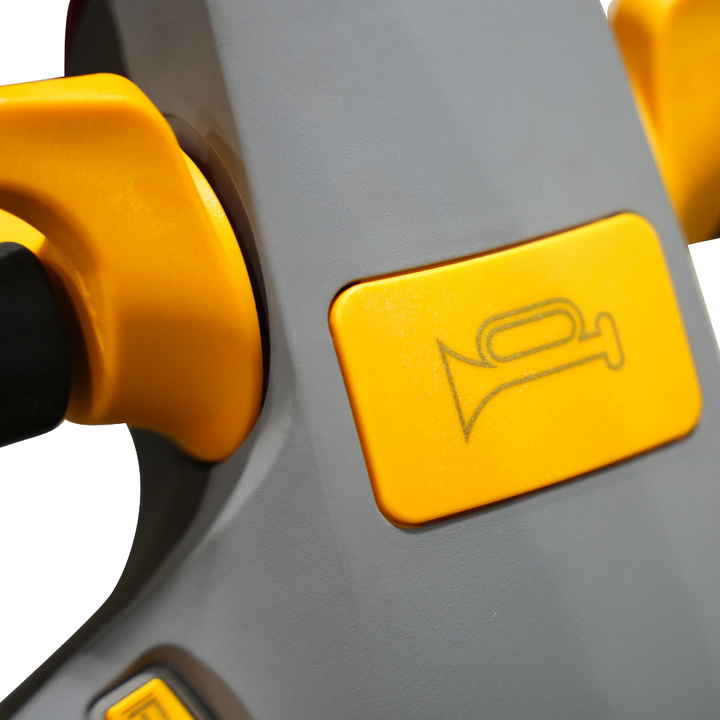

Ergonomic Controls: Operator comfort is key, with ergonomic controls designed to minimize fatigue and enhance ease of use.
-
Polyurethane Wheels: Smooth, quiet, and efficient, the polyurethane wheels provide optimal performance on a variety of surfaces.
-

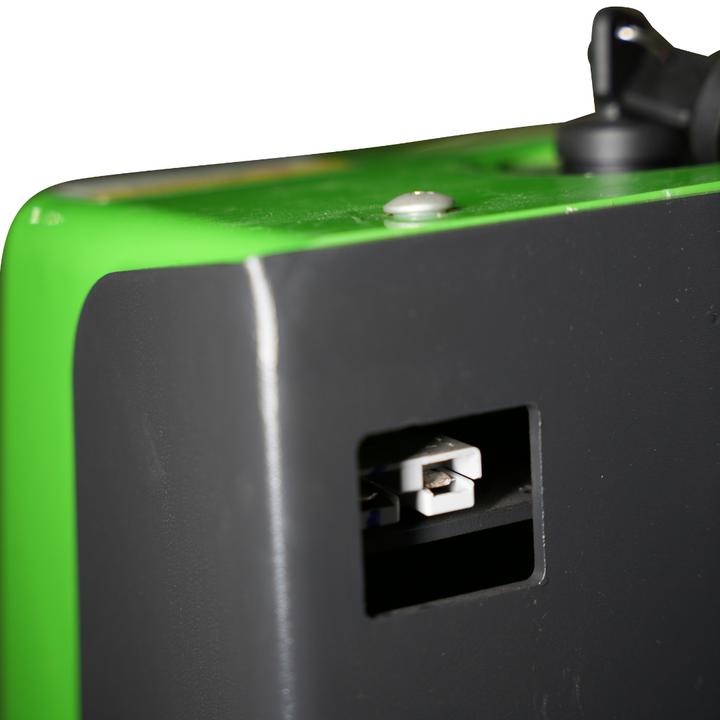

No-Installation Battery Charger: Enjoy hassle-free charging with the plug-and-play charger, eliminating the need for complex installations.
Backed by a 1-year warranty, the SST15 Electric Pallet Stacker delivers reliable performance and is ideal for use in warehouses, distribution centers, and logistics facilities. Upgrade your material handling with the SST15 and experience enhanced efficiency in your operations.
Ready to order? Call us at 8448619484 or email us at info@sumachay.com for more information.
SUMACHAY LIFTS SST15 - Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Manufacturer | SUMACHAY LIFTS | |
| Model designation | SST15 | |
| Power unit | Battery powered | |
| Operation | Pedestrian | |
| Load capacity | t | 1.5 |
| Load center | mm | 600 |
| Overall Length | l1 (mm) | 1740 |
| Overall Width | b1 / b2 (mm) | 795 |
| Service weight | kg | 149 |
| Axle load with load, front/rear | kg | 420 / 910 |
| Axle load without load, front/rear | kg | 110 / 20 |
| Tyre type | PU / PU | |
| Tyre size, front | mm | 210x70 |
| Tyre size, rear | mm | 80x60 |
| Wheels, number front/rear (X=drive) | 1x+/4 | |
| Lift Height | h3 (m) | 3500 |
| Fork Carriage Width | mm | 800 |
| Fork height, lowered | h13 (mm) | 86 |
| Ground Clearance (below mast) | mm | 40 |
| Length to fork face | l2 (mm) | 500 |

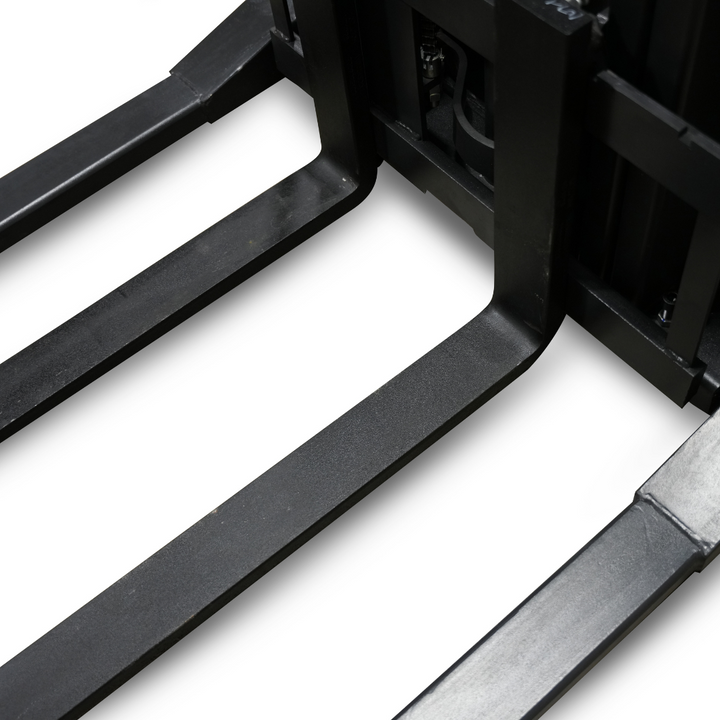

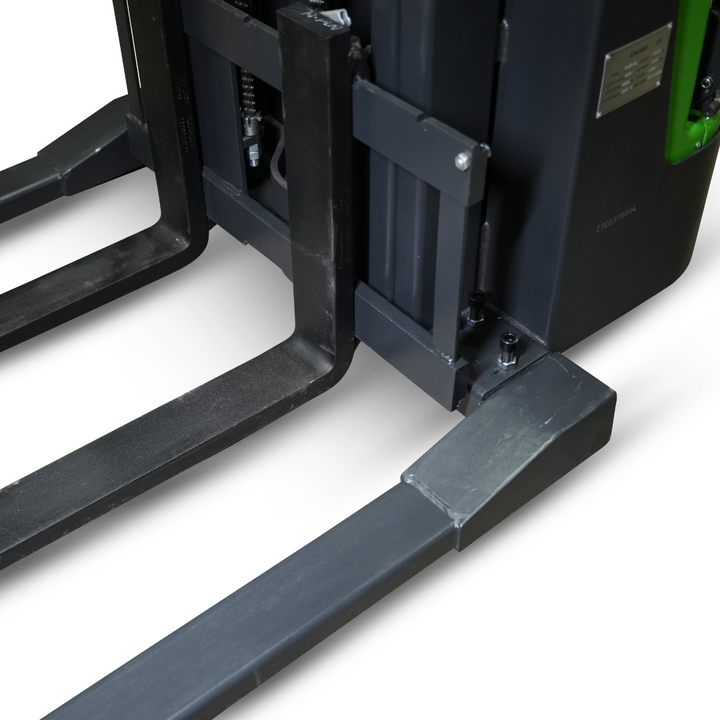

| Fork dimensions | sxexl (mm) | 50x150x1150 |
| Distance between fork arms | b5 (mm) | 570 - 695 |
| Aisle width, 1000 x 1200 along forks | Ast (mm) | 2075 |
| Aisle width, 800 x 1200 along forks | Ast (mm) | 2040 |
| Turning radius | Wa (mm) | 1342 |
| Travelling speed, with/without load | km / h | 4.0 / 4.1 |
| Lifting speed, with/without load | m/s | 0.02 / 0.025 |
| Lowering speed, with/without load | m/s | 0.06 / 0.03 |
| Max. gradability, laden/ unladen | % | 5 /10 |
| Acceleration time with/without load | s | 1 / 2 |
| Service brake | Electric | |
| Drive motor rating S2 60 min | (kW) | 0.75 |
| Lift motor rating at S3 10 % | (kW) | 2.2 |
| Battery acc. to DIN 43531/ 35/ 36 | A, B, C, no | Li-ion |
| Battery voltage, nominal capacity K5 | [V/ Ah] | 24 / 200 |
| Battery weight | kg | 54 |
| Energy consumption acc. to VDI cycle | kW/h | n / a |
| Type of drive control | DC | |
| Noise level | dB (A) | < 70 |
Warranty Information for Sumachay Pallet Lifts
Your SST15 Electric Pallet Stacker comes with a 12-month warranty that begins on the date of purchase, as indicated on your invoice. This warranty covers comprehensive repairs in the event of a legitimate fault or breakdown. However, it does not extend to issues arising from normal wear and tear, accidents, negligence, or improper use.
Please note that this warranty is voided if the unit is used in environments where it is submerged in water or exposed to fluids or chemicals.
To ensure the longevity and reliability of your electric pallet lift, we strongly recommend adhering to routine maintenance. This includes regular cleaning, proper lubrication, and appropriate storage.
If you have any questions about your warranty or require service, please contact our customer support team for further assistance.
What is the SST15 best suited for?
The SST15 is designed for indoor warehouse environments where you need to stack pallets vertically — up to 3,500 mm (11.5 ft). It works well for retail stockrooms, light manufacturing, and distribution centers handling 15+ stacking cycles per day. It's a compact alternative to a forklift for operations that need vertical storage without the cost and certification requirements of a forklift.
How does the SST15 compare to the SST15+?
Both models share the same 1,500 kg (3,300 lb) load capacity and 3,500 mm lift height. The SST15+ adds AC motor technology (double the drive power at 1.5kW vs 0.75kW), faster charging (80% in 1.5 hours vs 2-3 hours), diagnostic fault codes, and an 18-month warranty vs the SST15's 12-month coverage.
What is the battery life and charging time?
The SST15 uses a 24V lithium-ion battery that provides a full working day of operation under normal conditions. Charging time is approximately 2-3 hours with the included 110V wall charger — no special installation required.
Can the SST15 operate in cold storage?
The lithium-ion battery maintains good performance in cold environments. However, for continuous cold storage operations (below -10°C), we recommend the SST15+ which has enhanced components rated for sustained low-temperature use.
What does the warranty cover?
The SST15 includes a 12-month warranty covering parts and labor for manufacturing defects. This includes the drive motor, lift motor, controller, battery, hydraulic system, and structural frame. Wear items (wheels, seals) are covered for the first 6 months.
Is operator training required?
While the SST15 features intuitive controls, operator training is recommended for all powered industrial equipment. Contact our team at sales@sumachay.com or 844-861-9484 for training documentation.
What is the shipping process?
The SST15 ships from our Canadian warehouse via freight carrier. Delivery typically takes 3-7 business days depending on your location. Freight cost is calculated based on weight and delivery location, typically ranging from $180-$700.
Is the Plus version worth the upgrade?
It depends on your operation. If you run multiple shifts, handle 25+ stacking cycles daily, or operate in cold storage, the SST15+ provides meaningful advantages: AC motor (double drive power, no brushes to replace), faster charging (80% in 1.5 hours), diagnostic fault codes for faster troubleshooting, and 18-month warranty.
SST15 Electric Pallet Stacker
Advanced Electric Pallet Stacker for Maximum Efficiency
The SST15 Electric Pallet Stacker is engineered to deliver exceptional efficiency in material handling. Its electric operation reduces manual effort and increases productivity. With a lifting capacity of 3,000 lbs, it is suitable for a wide range of warehouse applications. The stacker’s compact design and advanced controls make it a versatile choice for modern warehousing needs. Experience a new level of efficiency with the SST15 Electric Pallet Stacker.
High-Performance Lifting and Lowering

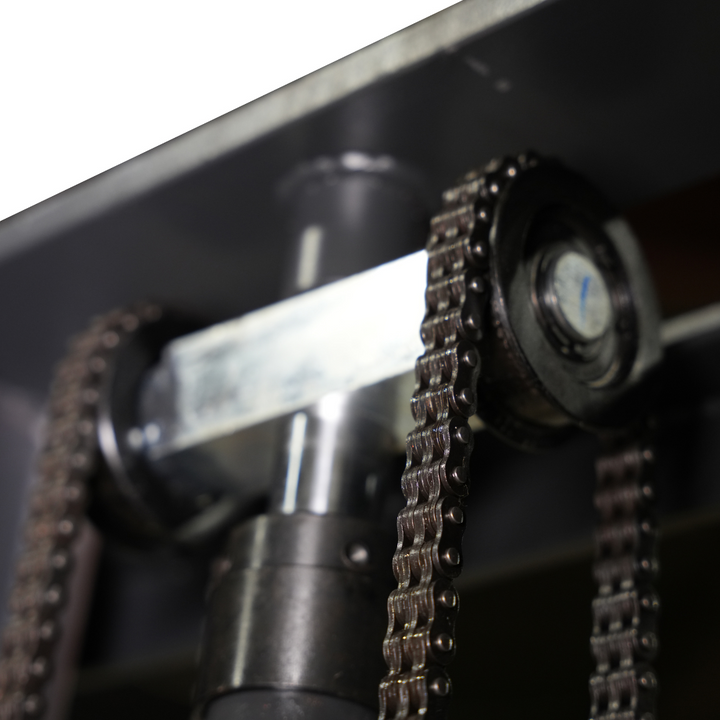

Equipped with a powerful electric motor, the SST15 offers high-performance lifting and lowering capabilities. The stacker’s precise control system ensures smooth and accurate operations, enhancing overall workflow. Its robust lifting mechanism supports heavy loads with ease, reducing strain on operators. The SST15 is ideal for handling and stacking tasks in busy warehouse environments. Invest in high-performance with the SST15.
User-Friendly Controls and Operation
The SST15 Electric Pallet Stacker features user-friendly controls that simplify operation. Its intuitive interface allows operators to easily manage lifting, lowering, and maneuvering tasks. The ergonomic controls reduce operator fatigue and enhance productivity. This stacker is designed to be easy to use, even for those with minimal experience. Enjoy effortless operation with the SST15.
Versatile Applications for Modern Warehouses
The SST15 is versatile and adaptable, making it suitable for various warehouse applications. Whether you need to stack pallets, move goods, or handle inventory, this electric pallet stacker meets your needs. Its compact design allows for efficient use in tight spaces and narrow aisles. The SST15 is an excellent choice for improving operational flexibility and efficiency in any modern warehouse.
Reliable Maintenance and Support
To maintain the performance and reliability of your SST15 Electric Pallet Stacker, regular maintenance is crucial. Sumachay provides expert maintenance and repair services to ensure your stacker operates at peak efficiency. Our team offers prompt support and access to necessary parts and accessories. Trust Sumachay for dependable maintenance and exceptional service.
Request a Quote
A sales representative will contact you shortly.
Operational Fit
The SST15 is built for efficient vertical stacking in warehouses and distribution centers. Here's who it's designed for.
- Warehouses with vertical storage needs and multi-level racking
- Standard pallet loads up to 3,300 lb requiring electric lift
- Distribution centers needing efficient stacking for order fulfillment
- Operations upgrading from manual stacking to powered electric lift
- Manufacturing facilities optimizing floor space with vertical stacking
- Single-shift operators on flat concrete or sealed warehouse floors
Performance & Ownership
Power & Efficiency
- 3,300 lb capacity with 138" lift height for multi-level racking
- 24V lithium-ion battery charges in 2–3 hours on standard 110V outlet
Uptime & Durability
- Electric lift eliminates manual strain — reduces operator fatigue across shifts
- Replacement parts stocked in Ontario for rapid turnaround
Service & Support
- Service center in Ontario with remote diagnostic support available
- 1-year warranty on parts and labor — claims handled directly by our team
Key Specifications at a Glance
Compare Stacker Models
Four stackers, one capacity class — find the right fit for your operation. Not sure? Request a quote and we'll recommend.
SST15
Standard electric stacker — reliable single-shift performance
- Battery System: 24V lithium-ion
- Charger Input: 110V standard
- Electric lift up to 138" (~3.5 m) for vertical stacking
- 0.75kW DC motor handles standard stacking loads
- Lithium-ion battery with 110V charging

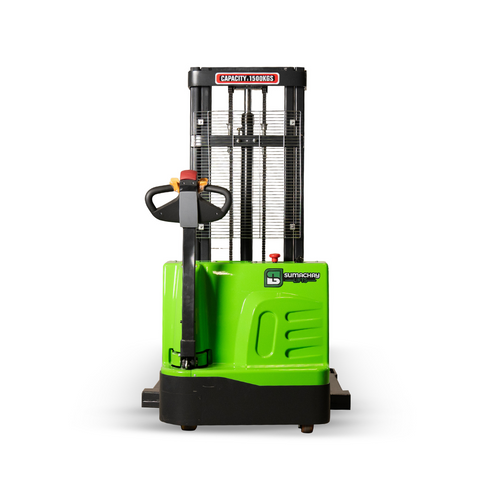

SST15-C
Compact electric stacker — 2.5 m lift for low-ceiling facilities
- Battery System: 100Ah lithium-ion
- Charger Input: 110V standard
- Electric lift up to 98" (2.5 m) — ideal for low ceilings
- 100Ah battery for extended runtime across shifts
- Fully powered drive and lift in a compact footprint

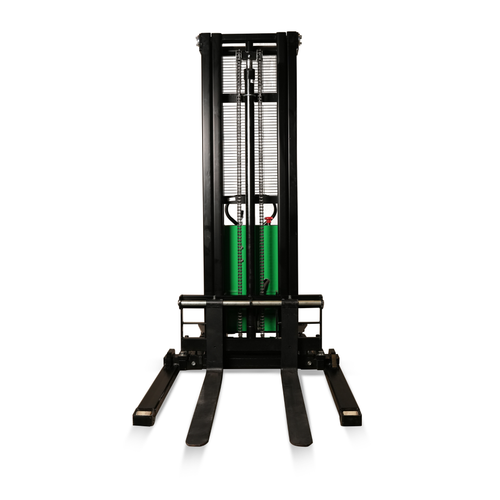

SSE15
Semi-electric stacker — electric lift, manual push. Budget-friendly entry point.
- Battery System: 24V lithium-ion
- Charger Input: 110V standard
- Electric lift up to 118" (3.0 m) — manual push for simplicity
- Lower acquisition cost for lighter-duty stacking needs
- Free shipping available on this model
Procurement & Risk Comparison
A procurement-focused view of total cost, support, and delivery accountability.
| Criteria | Other Vendors | Sumachay |
|---|---|---|
| After-Sale Support | Limited or none; seller may be overseas | Direct phone + email support from Canadian team |
| Replacement Parts | Weeks-long wait from overseas; compatibility uncertain | Parts stocked in Ontario; ships within days |
| Warranty Clarity | Vague terms; difficult to claim | Clear 1-year warranty; claim process handled directly |
| Battery & Charger | Unknown cell quality; charger specifications may vary | Lithium-ion with 120V North American charger included |
| Shipping Damage | Buyer often responsible; long dispute process | We handle freight claims directly; replacement or repair |
| Service Availability | No local service network | Service center in Ontario + remote diagnostic support |
How a Distribution Center Improved Stacking Efficiency
A mid-size distribution center in Ontario needed to stack pallets efficiently for order fulfillment. After replacing manual stacking with SST15 units, operators completed stacking tasks faster with less physical strain, and floor space utilization improved with consistent vertical storage.
- Vertical stacking freed up floor space for additional inventory
- Operators reported less fatigue on stacking-intensive shifts
- Order fulfillment throughput improved with organized storage
Based on customer feedback — Ontario distribution operation
