SST1655R Ride-On Electric Stacker – 1600 kg | 5.5m Lift Height
- ✔️ 1600kg load capacity with 5.5m lifting height and ride-on comfort.
- ✔️ Lithium-ion powered with AC drive and Curtis controller for smooth handling.
- ✔️ Compact turning radius, side safety guards, and ergonomic operator platform.
Prefer a formal quote? Get it by email.
Request a Quote
A sales representative will contact you shortly.
Fast Shipping
Satisfaction Guaranteed
1 Year Warranty

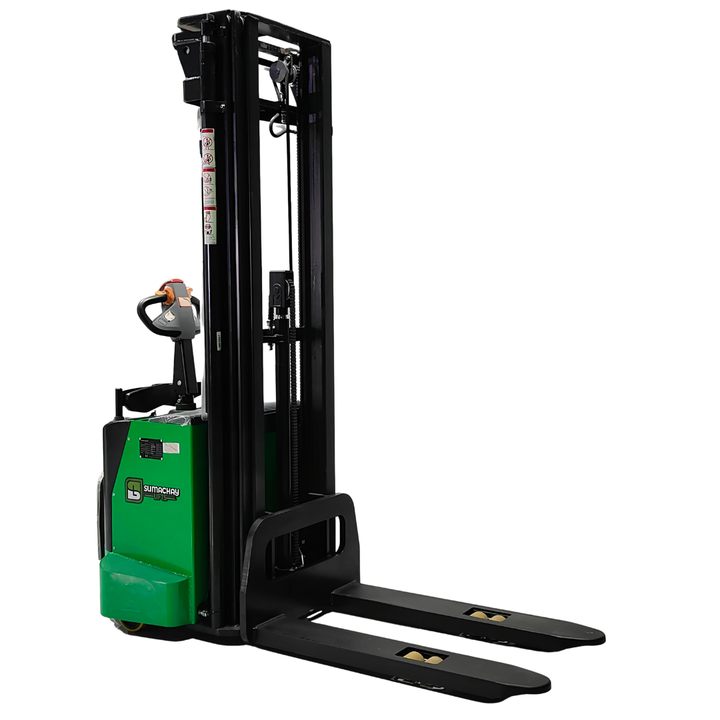

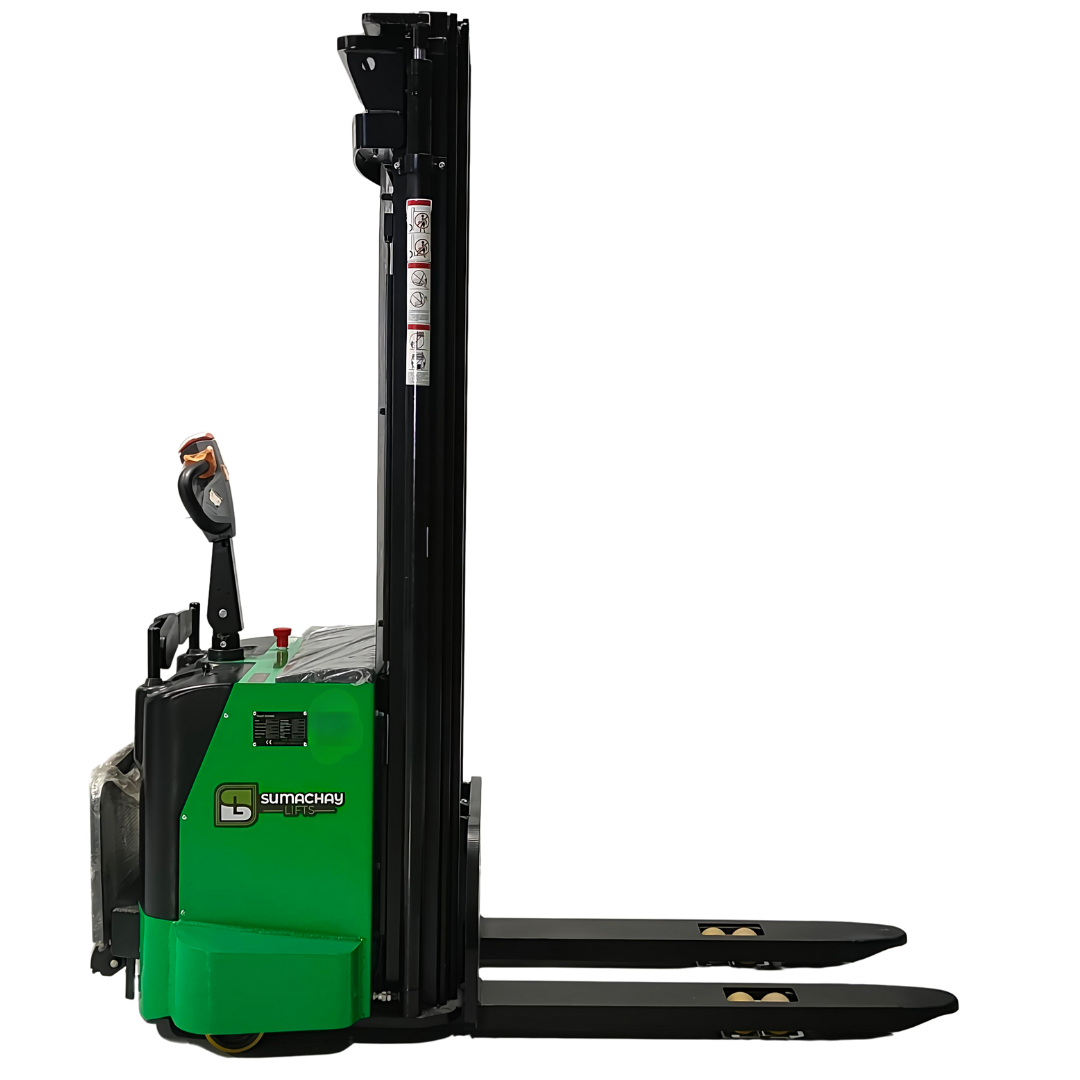

SST1655R Electric Ride-On Stacker
High-Lift Performance with Ride-On Comfort and Lithium Power Efficiency
The SST1655R Electric Ride-On Stacker is designed for operators who value speed, comfort, and control in high-intensity warehouse operations. Its ergonomic ride-on design reduces operator fatigue while delivering exceptional lifting stability up to 5.5 meters. Equipped with advanced AC drive technology and a maintenance-free lithium battery system, this model combines performance and reliability for modern material handling.
Product Features
- Powerful 1600kg lifting capacity with smooth electric ride-on operation for efficient long-distance handling.
- Advanced AC drive system ensures responsive acceleration, strong gradeability, and energy-efficient performance.
- Ergonomic standing platform with safety side guards and anti-slip surface for operator comfort and security.
- High-visibility mast and compact turning radius for safe operation in narrow aisles.
- Equipped with lithium-ion battery system, fast charging capability, and smart battery management for long uptime.
Technical Specifications
| Characteristics | |
|---|---|
| Model | SST1655R |
| Power Unit | Electric |
| Operation | Standing on (Ride-On) |
| Rated Traction Weight Q (kg) | 1600 |
| Load Centre c (mm) | 600 |
| Axle Centre to Fork Face x (mm) | 675 |
| Wheel Base y (mm) | 1320 |
| Service Weight (with battery) (kg) | 1340 |
| Wheels / Tyres | |
| Wheels Type | PU |
| Driving Wheel Size (Φ×w mm) | Φ250×75 |
| Bearing Wheel Size (Φ×w mm) | Φ80×70 |
| Additional Wheels (Φ×w mm) | Φ150×58 |
| Wheels, Front/Rear (x = driven) | 1,4/2 |
| Track Width b10 (mm) | 828 |
| Track Width b11 (mm) | 390 / 515 |
| Dimensions | |
| Free Lift h1 (mm) | 2386 |
| Lift h2 (mm) | 1894 |
| Height of Mast, Extended h3 (mm) | 5500 |
| Height of Seat/Platform h4 (mm) | 6060 |
| Overall Height (with Handle) h14 (mm) | 1040 / 1415 |
| Lowered Fork Height h13 (mm) | 86 |
| Overall Length l1 (mm) | 2085 |
| Length to Fork Face l2 (mm) | 925 |
| Overall Width b1/b2 (mm) | 1060 |
| Fork Dimensions s/e/l (mm) | 60 / 180 / 1150 |
| Width of Forks b5 (mm) | 570 / 695 |
| Min. Ground Clearance m2 (mm) | 26 |
| Aisle Width (1000×1200mm pallet, across forks) Ast (mm) | 2503 |
| Aisle Width (800×1200mm pallet, along forks) Ast (mm) | 2480 |
| Min. Turning Radius Wa (mm) | 1630 |
| Performance | |
| Travel Speed (laden/unladen) (km/h) | 5.2 / 5.5 |
| Lifting Speed (laden/unladen) (mm/s) | 100 / 140 |
| Lowering Speed (laden/unladen) (mm/s) | 175 / 110 |
| Maximum Climbing Ability (laden/unladen) (%) | 6 / 8 |
| Service Brake | Electromagnetic |
| Drive | |
| Drive Motor (60 min rating) (kW) | 1.5 |
| Lift Motor Rating (S3 15%) (kW) | 3.0 |
| Battery Voltage / Capacity (V/Ah) | 24 / 240 |
| Battery Weight (±5%) (kg) | 240 |
| Other | |
| Type of Drive Control | AC |
| Noise Level at Operator's Ear (dB(A)) | ≤70 |
Your Sumachay Electric Stacker is backed by a 12-month limited warranty from the date of purchase.
This warranty covers manufacturing defects, performance failures under normal use, and includes access to replacement parts and technical guidance.
Please note, wear and tear items such as wheels, fuses, and brushes are not covered under this warranty. Damage due to misuse, overloading, or accidents is also excluded.
For service or support, contact our technical team with your product serial number and invoice for assistance.
Frequently Asked Questions
What is the lifting capacity of the SST1655R?
The SST1655R has a lifting capacity of 1600 kg (3527 lbs), making it suitable for most standard and heavy pallets.
How high can it lift?
This model lifts up to 5500 mm (5.5 meters), allowing easy stacking of pallets in high racking systems.
Does this stacker support ride-on operation?
Yes. The SST1655R features a built-in standing platform for ride-on operation, significantly improving operator efficiency and comfort.
What type of battery does it use?
It is equipped with a powerful 24V 240Ah industrial battery that provides long runtime and fast charging cycles.
What is the turning radius?
The machine has a tight turning radius of 1630 mm, making it ideal for maneuvering in narrow aisles.
Is this suitable for cold storage or outdoor use?
It is ideal for indoor warehouse use. For cold environments or outdoor applications, contact us for a battery upgrade or weather-sealed options.
Is there after-sales service and warranty?
Yes. The SST1655R comes with a 12-month limited warranty. Spare parts and support are available through our service network.
