SST1645R Ride-On Electric Stacker – 1600 kg | 4.5m Lift Height
- ✔ 1600 kg Load Capacity: Reliable performance for heavy pallet stacking and lifting.
- ✔ 4500 mm Lift Height: Reach higher racks and optimize warehouse storage.
- ✔ Ride-On Operation: Enhanced productivity with standing platform and ergonomic controls.
- ✔ Electronic Power Steering: Smooth and responsive handling for precise maneuvering.
- ✔ 24V/240Ah Battery: Long runtime, fast charging, and built-in safety features.
Prefer a formal quote? Get it by email.
Request a Quote
A sales representative will contact you shortly.
Fast Shipping
Satisfaction Guaranteed
1 Year Warranty

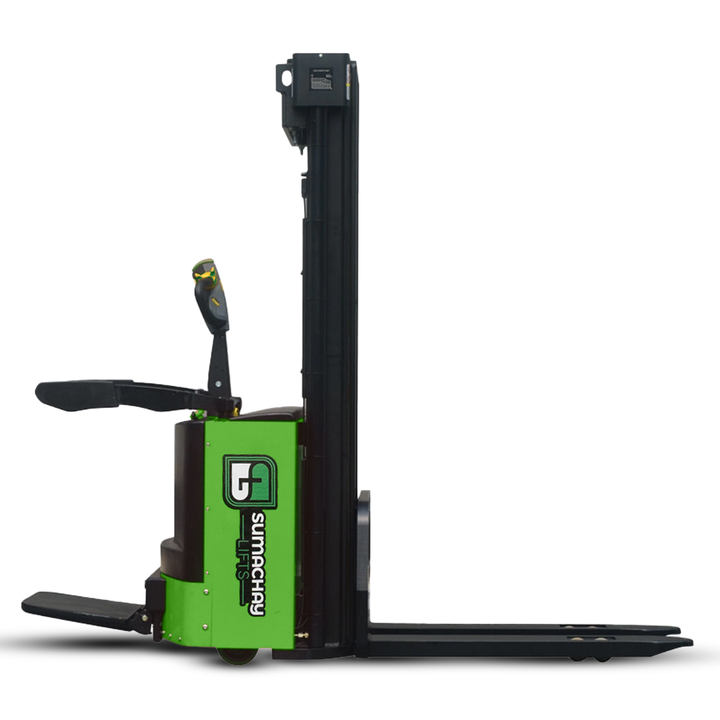

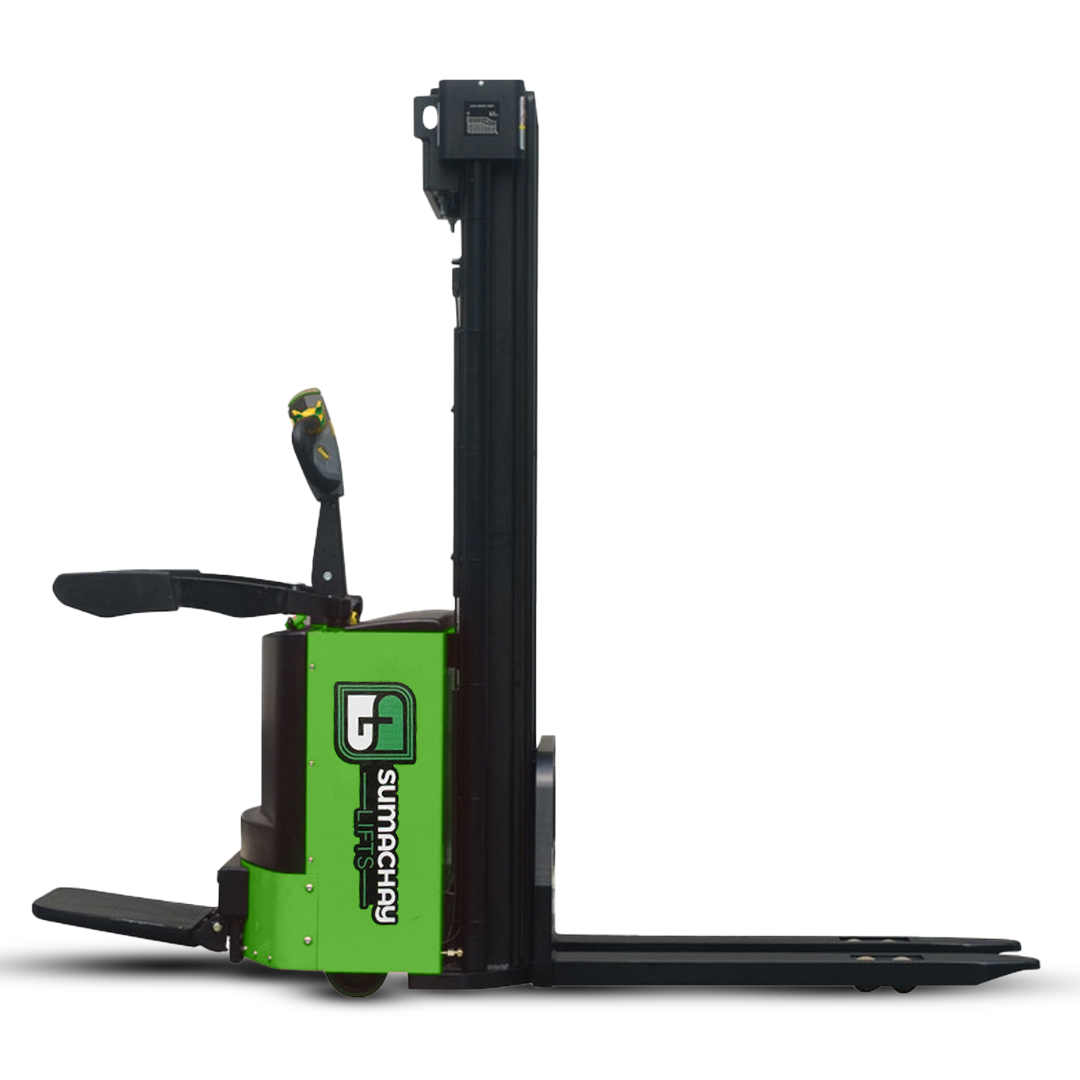

SST1645R Ride-On Electric Stacker
Heavy-Duty Power Meets Smooth Control
The SST1645R is Sumachay's premium ride-on electric stacker, engineered for high-throughput warehouses and demanding distribution centers. With a lifting capacity of 1600 kg and a maximum lift height of 4500 mm, this stacker is designed to boost efficiency while keeping your operators comfortable and in control.
Precision Ride-On Handling
Equipped with a built-in standing platform and full electronic power steering, the SST1645R makes load handling fast and intuitive. From tight aisles to long warehouse runs, this stacker delivers smooth acceleration, braking, and turning even in the most confined spaces.
Built for Endurance
Powered by a 24V/240Ah battery system, this machine ensures extended runtime and fast recharge cycles to minimize downtime. With a compact turning radius of just 1630 mm and reinforced PU wheels, it's ideal for narrow warehouses and industrial operations alike.
Key Specifications:
- Rated Load: 1600 kg
- Lift Height: 4500 mm
- Travel Speed (Unladen): 5.5 km/h
- Lift Speed (With Load): 100 mm/s
- Lowering Speed (With Load): 175 mm/s
- Turning Radius: 1630 mm
- Battery: 24V / 240Ah
- Drive Motor: 1.5 kW (AC)
- Service Brake: Electromagnetic
Operator-Centric Design
Enjoy effortless operation with anti-vibration foot pads, butterfly shrapnel dampening, and an intelligently positioned floating bracket for balance and safety. The handle is intuitive to use, ensuring new and experienced operators feel confident right away.
Applications:
Perfect for use in warehouses, logistics centers, and manufacturing facilities that require fast stacking, safe navigation in tight spaces, and long operating cycles.
Technical Specifications – SST1645R Ride-On Electric Stacker
| Category | Specification |
|---|---|
| Power Unit | Electric |
| Operation Type | Ride-On (Standing Platform) |
| Load Capacity | 1600 kg |
| Lift Height | 4500 mm |
| Free Lift | 2054 mm |
| Travel Speed (laden/unladen) | 5.2 / 5.5 km/h |
| Turning Radius | 1630 mm |
| Fork Size | 1150 x 570 mm |
| Battery Voltage / Capacity | 24V / 240Ah |
| Battery Weight | 240 kg ±5% |
| Lifting Speed (with/without load) | 100 / 140 mm/s |
| Lowering Speed (with/without load) | 175 / 110 mm/s |
| Climbing Ability (laden/unladen) | 6% / 8% |
| Brake Type | Electromagnetic |
| Drive Motor Power | 1.5 kW (AC) |
| Lift Motor Power | 3.0 kW |
| Noise Level at Operator's Ear | ≤70 dB(A) |
Your Sumachay Electric Stacker is backed by a 12-month limited warranty from the date of purchase.
This warranty covers manufacturing defects, performance failures under normal use, and includes access to replacement parts and technical guidance.
Please note, wear and tear items such as wheels, fuses, and brushes are not covered under this warranty. Damage due to misuse, overloading, or accidents is also excluded.
For service or support, contact our technical team with your product serial number and invoice for assistance.
Frequently Asked Questions
What is the lifting capacity of the SST1645R?
The SST1645R has a lifting capacity of 1600 kg (3527 lbs), making it suitable for most standard and heavy pallets.
How high can it lift?
This model lifts up to 4500 mm (4.5 meters), allowing easy stacking of pallets in high racking systems.
Does this stacker support ride-on operation?
Yes. The SST1645R features a built-in standing platform for ride-on operation, significantly improving operator efficiency and comfort.
What type of battery does it use?
It is equipped with a powerful 24V 240Ah industrial battery that provides long runtime and fast charging cycles.
What is the turning radius?
The machine has a tight turning radius of 1630 mm, making it ideal for maneuvering in narrow aisles.
Is this suitable for cold storage or outdoor use?
It is ideal for indoor warehouse use. For cold environments or outdoor applications, contact us for a battery upgrade or weather-sealed options.
Is there after-sales service and warranty?
Yes. The SST1645R comes with a 12-month limited warranty. Spare parts and support are available through our service network.
