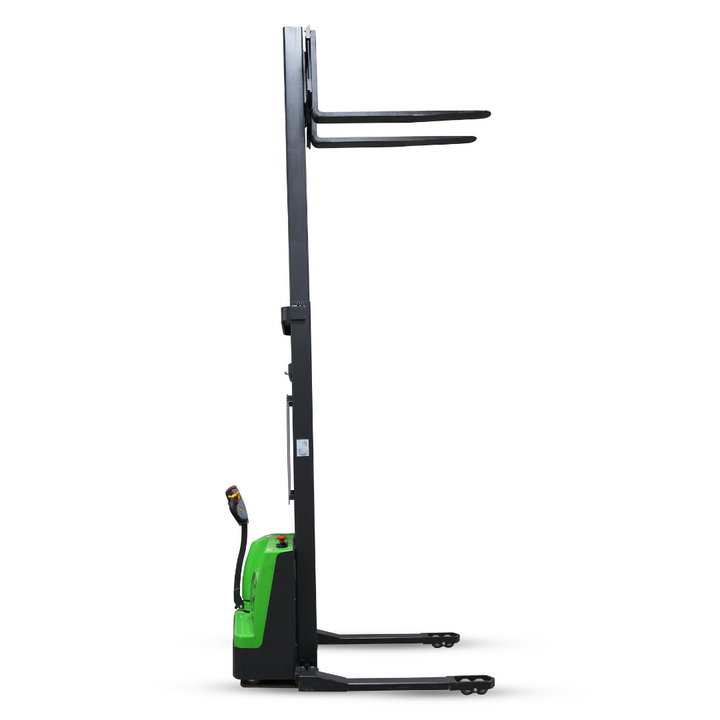

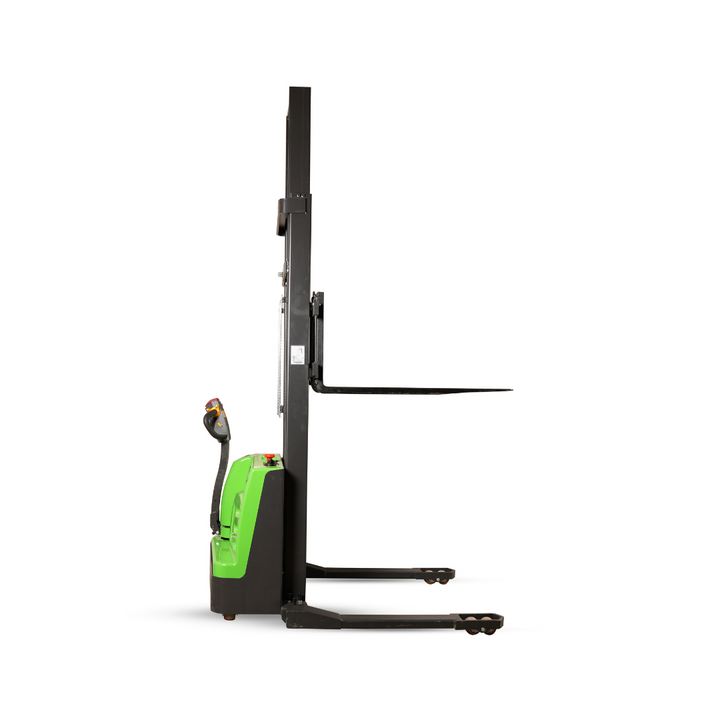

SST1630 Electric Pallet Stacker - 1600kg Capacity, 3m Lifting Height
- ✔ 1600kg Lifting Capacity: Handles heavy loads with ease for efficient warehouse operations.
- ✔ 3 m Lifting Height: Reaches up to 118 inches, ideal for high-stack storage in warehouses.
- ✔ 120Ah Lithium-ion Battery: Prolonged performance with minimal downtime, supported by a larger 24V 30-amp charger for faster recharging.
1600kg Lifting Capacity
120Ah Lithium-ion Battery
Small Turning Radius
3 meter Lifting Height
Prefer a formal quote? Get it by email.
Request a Quote
A sales representative will contact you shortly.
Fast Shipping
Satisfaction Guaranteed
1 Year Warranty

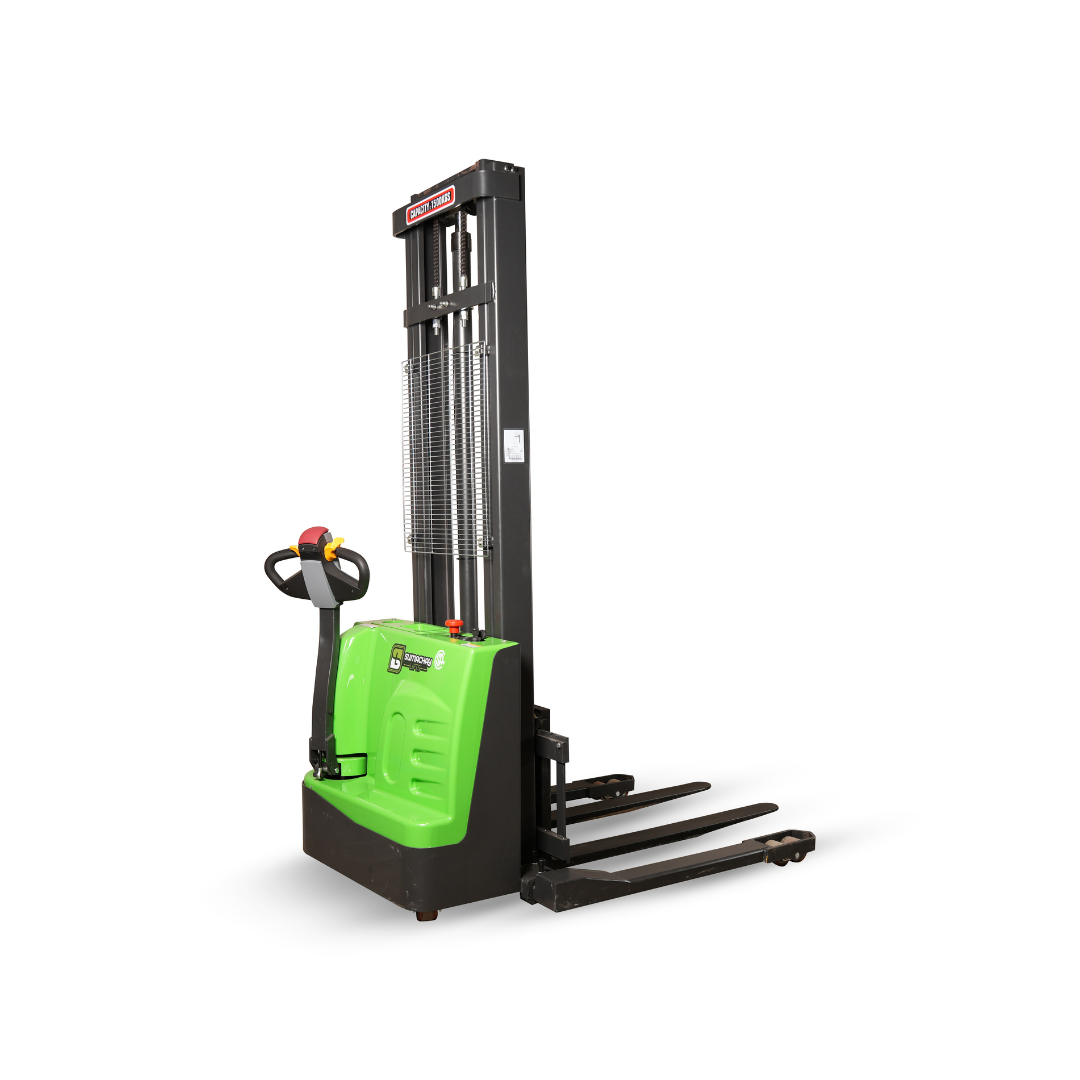

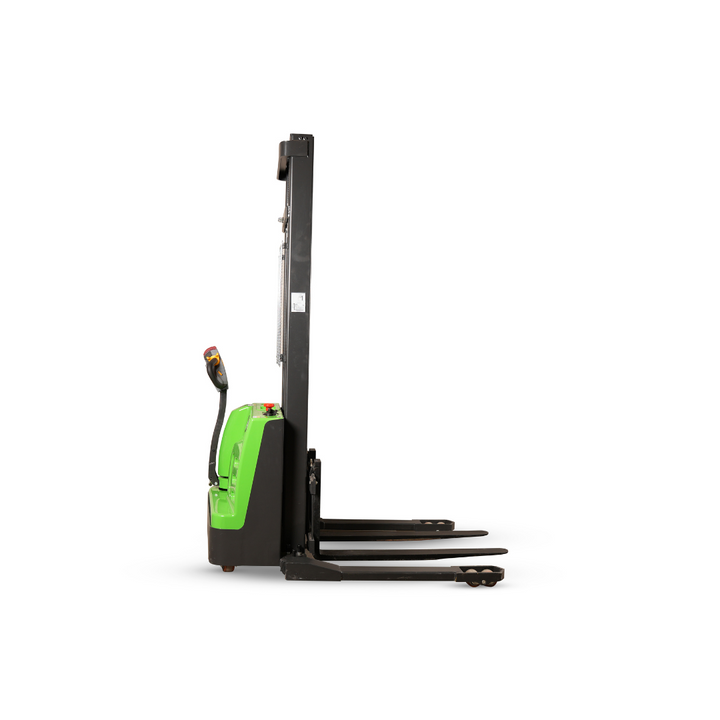

Designed to push your warehouse operations to new levels of efficiency, the SST1630 Electric Pallet Stacker is an advanced version of the original, packed with even more power and versatility. Assembled in India, this heavy-duty stacker is equipped with a powerful 120Ah lithium-ion battery, delivering exceptional performance and reliability. Whether you're lifting, stacking, or moving, the SST1630 handles loads up to 1600kg with ease, now reaching an impressive lifting height of 3 meters.
Key Features:
-
1600kg Lifting Capacity: Handle your heaviest loads with confidence, thanks to the robust construction of the SST1630.
-
3 m Lifting Height: Reach new heights with the enhanced lifting height of 3 meters, making it perfect for high-stack storage in warehouses and distribution centers.
-
120Ah Lithium-ion Battery: Experience prolonged performance with the reliable 120Ah lithium-ion battery, ensuring minimal downtime for charging and long-lasting power.
-
Larger 24V 30A Charger: The SST1630 now includes a larger 24V 30-amp charger, offering faster and more efficient recharging to keep your operations running smoothly.
-

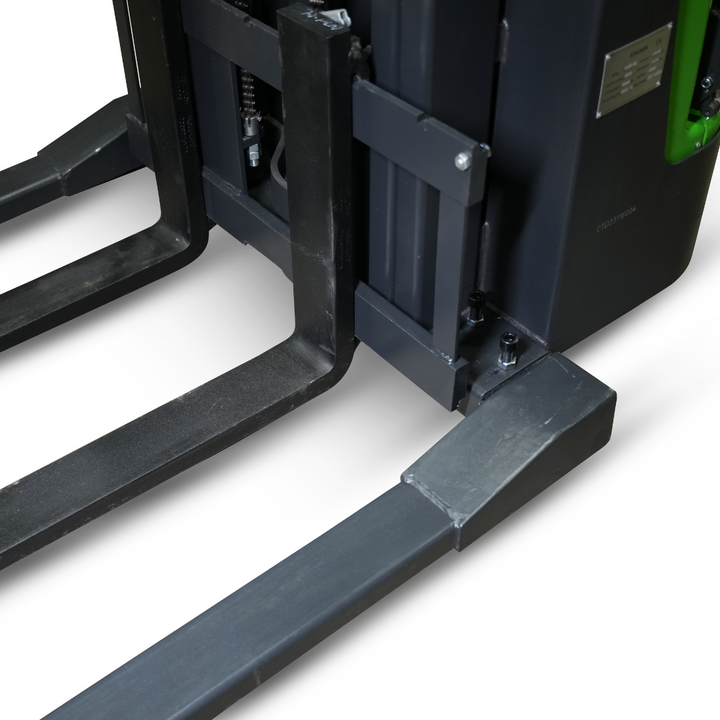

Easily Movable Support Legs: The redesigned support legs are easy to maneuver, providing additional flexibility for navigating tight or awkward spaces with precision.
-
Small Turning Radius: Maintain full control in crowded warehouse aisles, thanks to the small turning radius, allowing for superior maneuverability.
-
Automatic Safety Features: Prioritize workplace safety with automatic safety mechanisms, such as a safety release braking system, to ensure secure operation.
-

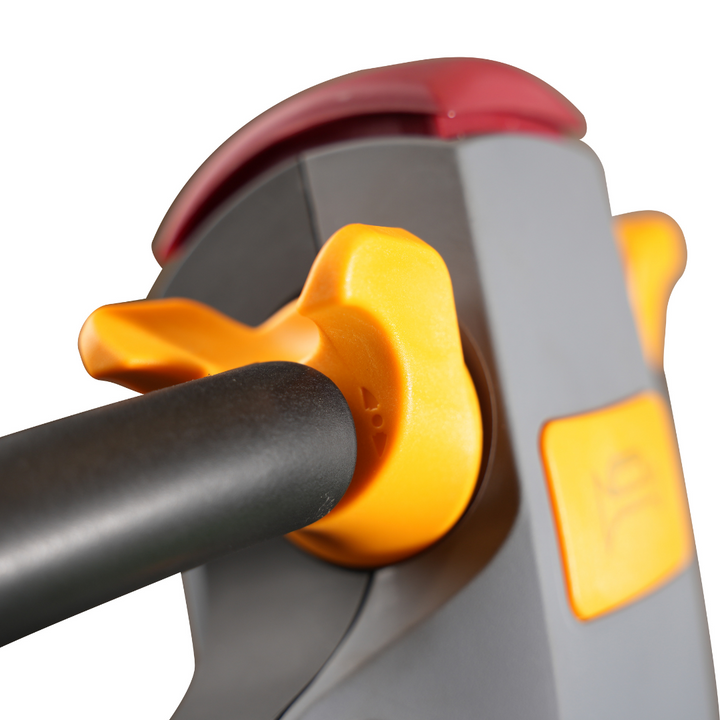

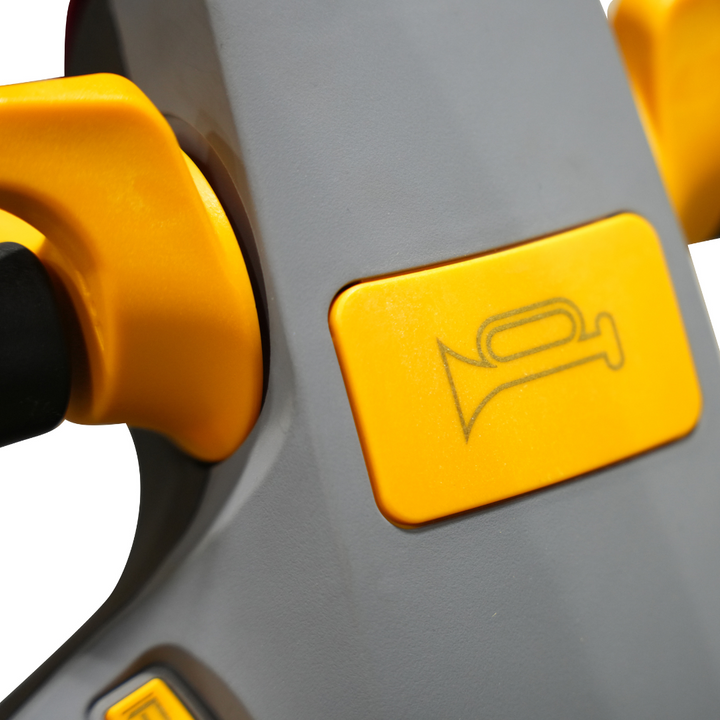

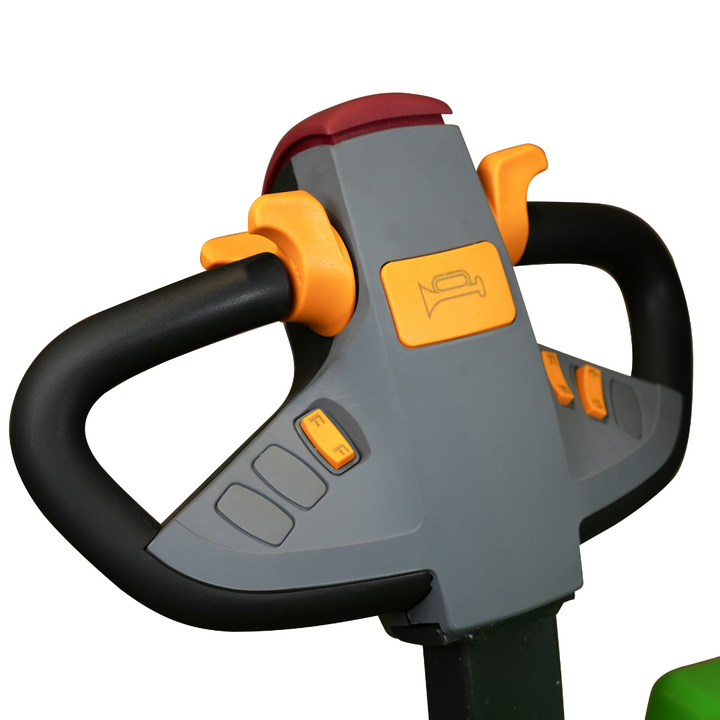

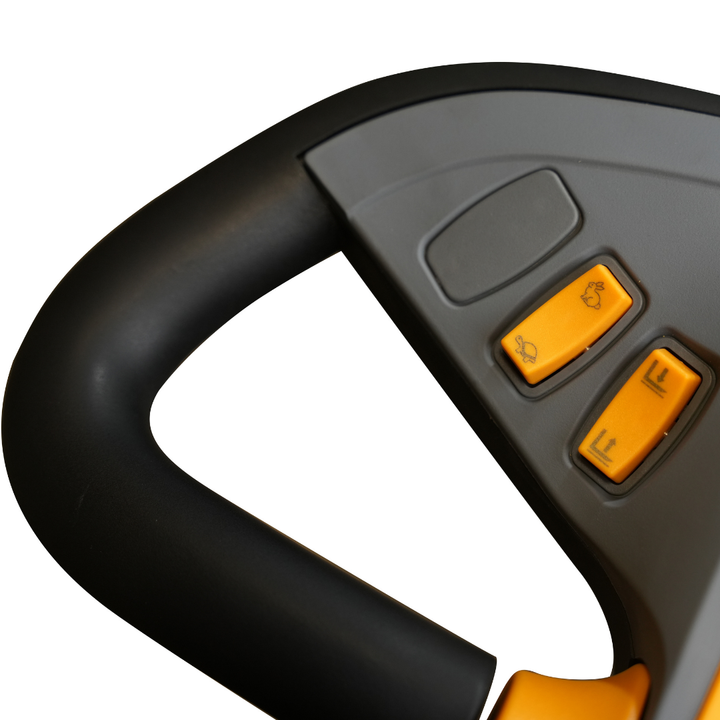

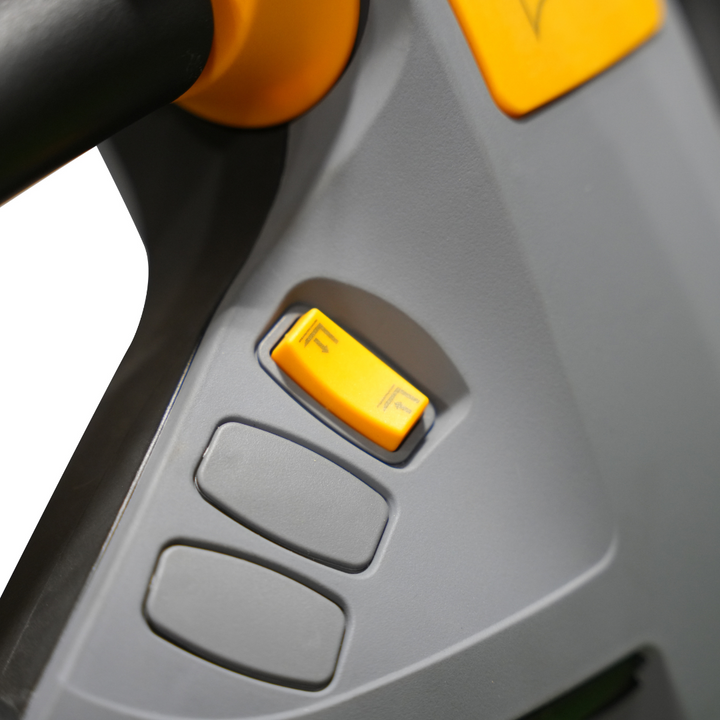

Ergonomic Controls: Operator comfort is key, with ergonomic controls designed to minimize fatigue and enhance ease of use.
-
Polyurethane Wheels: Smooth, quiet, and efficient, the polyurethane wheels provide optimal performance on a variety of surfaces.
-
No-Installation Battery Charger: Enjoy hassle-free charging with the plug-and-play charger, eliminating the need for complex installations.
Backed by a 1-year warranty, the SST1630 Electric Pallet Stacker delivers reliable performance and is ideal for use in warehouses, distribution centers, and logistics facilities. Upgrade your material handling with the SST1530 and experience enhanced efficiency in your operations.
Ready to order? Call us at 9019294106 or email us at india@sumachay.com for more information.
SUMACHAY LIFTS SST1630 - Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Manufacturer | SUMACHAY LIFTS | |
| Model | SST1630 | |
| Power Unit | Electric | |
| Operation | Pedestrian | |
| Rated Traction Weight Q | kg | 1600 |
| Load Centre c | mm | 600 |
| Axle Centre to Fork Face x | mm | 675 |
| Wheel Base y | mm | 1118 |
| Service Weight with Battery | kg | 672 |
| Wheels / Tyres | ||
| Wheels Type | PU | |
| Driving Wheel Size | Φ×w (mm) | Φ230×75 |
| Bearing Wheel Size | Φ×w (mm) | Φ80×70 |
| Additional Wheels (dimensions) | Φ×w (mm) | Φ150×58 |
| Wheels, Number Front/Rear (x = driven) | 1x+1/4 | |
| Track Width b10 | mm | 526 |
| Track Width b11 | mm | 390/515 |
| Dimensions | ||
| Free Lift h1 | mm | 1995 |
| Lift h2 | mm | 0 |
| Height of Mast, Extended h3 | mm | 3000 |
| Height of Seat/Stand-on Platform h4 | mm | 3452 |
| Overall Height (With Handle) h14 | mm | 870 / 1200 |
| Lowered Fork Height h13 | mm | 86 |
| Overall Length l1 | mm | 1755 |
| Length to Fork Face l2 | mm | 605 |
| Overall Width b1/b2 | mm | 795 |
| Fork Dimensions s/a/l | mm | 60/180/1150 |
| Width of Forks b5 | mm | 570–695 |
| Min. Ground Clearance m2 | mm | 26 |
| Aisle Width with Pallet 1000×1200 (across forks) | Ast (mm) | 2178 |
| Aisle Width with Pallet 800×1200 (along forks) | Ast (mm) | 2156 |
| Min. Turning Radius Wa | mm | 1295 |
| Performance | ||
| Travel Speed, Laden / Unladen | km/h | 4.0 / 4.2 |
| Lifting Speed, With / Without Load | mm/s | 92 / 136 |
| Lowering Speed, With / Without Load | mm/s | 112 / 98 |
| Maximum Climbing Ability, With / Without Load | % | 6 / 10 |
| Service Brake | Electromagnetic | |
| Drive | ||
| Drive Motor (60 min rating) | kW | 1.5 |
| Lift Motor Rating at S3 15% | kW | 2.2 |
| Battery Voltage / Rated Capacity | V / Ah | 2×12 / 120 |
| Battery Weight (±5%) | kg | 2×34 |
| Other | ||
| Type of Drive Control | AC | |
| Noise Level at Operator's Ear | dB(A) | ≤70 |
| Type of Steering | Mechanical Steering | |
Warranty Information for Sumachay Pallet Lifts
Your SST1630 Electric Pallet Stacker comes with a 12-month warranty that begins on the date of purchase, as indicated on your invoice. This warranty covers comprehensive repairs in the event of a legitimate fault or breakdown. However, it does not extend to issues arising from normal wear and tear, accidents, negligence, or improper use.
Please note that this warranty is voided if the unit is used in environments where it is submerged in water or exposed to fluids or chemicals.
To ensure the longevity and reliability of your electric pallet lift, we strongly recommend adhering to routine maintenance. This includes regular cleaning, proper lubrication, and appropriate storage.
If you have any questions about your warranty or require service, please contact our customer support team for further assistance.
