SESL0515 Electric Semi-Lifting Stacker – 500kg Capacity, 1.5m Lift Height
- ✔️ Lifts up to 500kg to 1500mm – ideal for deliveries and warehouses.
- ✔️ Self-lifting design climbs directly into trucks – no ramp needed.
- ✔️ Dual-cylinder lift, swing guide wheels, and compact 12V electric motor.
Prefer a formal quote? Get it by email.
Request a Quote
A sales representative will contact you shortly.
Fast Shipping
Satisfaction Guaranteed
1 Year Warranty

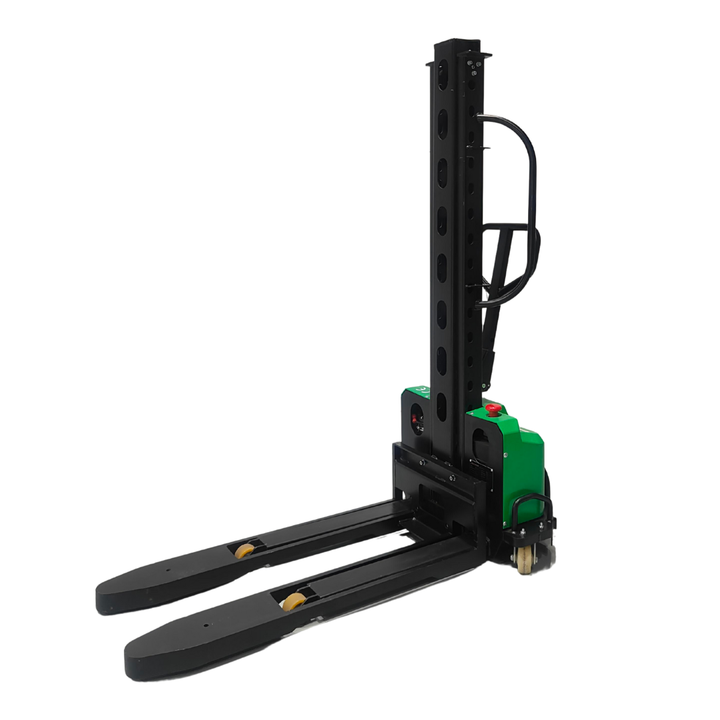

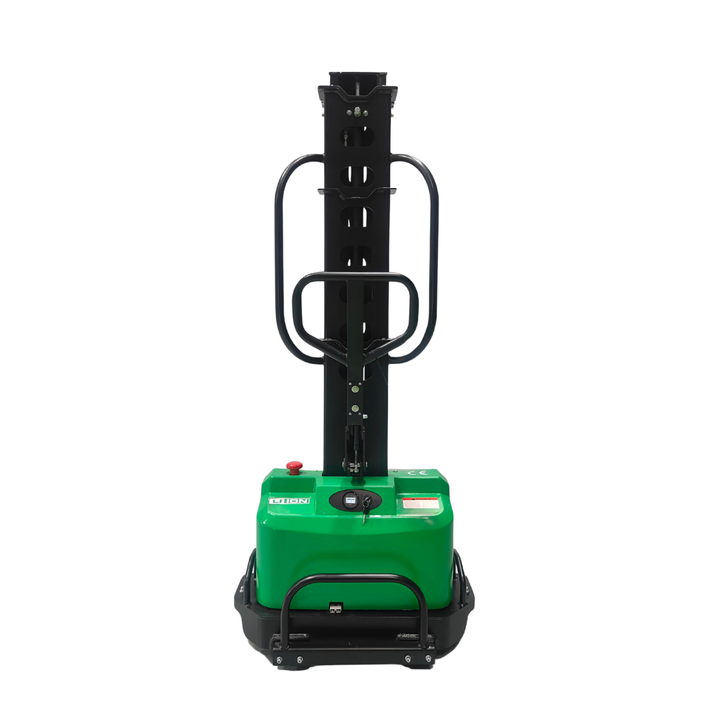

Introducing the Sumachay SESL0515 Electric Self-Lifting Stacker – a lightweight, multi-functional handling solution designed for logistics, deliveries, and warehouse operations. This innovative stacker integrates lifting, stacking, and self-loading capabilities, making it a perfect helper for truck drivers and warehouse personnel.
With a compact frame and self-lifting system, the SESL0515 can load itself directly into trucks or vans — eliminating the need for ramps or loading docks. Powered by a 12V electric lift motor, it offers efficient 500kg lifting capacity up to 1500mm while maintaining smooth operation with minimal effort.
Its dual-cylinder linkage mechanism ensures balanced lifting, and the integrated swing guide wheel makes vehicle entry easy and stable. Built with nylon/PU materials, it’s durable, low-noise, and suitable for frequent urban and indoor logistics operations.
Key Features:
- Multi-Functional Design: Combines handling, stacking, and climbing for flexible use.
- Self-Lifting System: The unit can lift itself into trucks or vans – no ramp needed.
- Lightweight & Easy Operation: Compact, ergonomic design allows simple control.
- Swivel Guide Wheels: Equipped with support legs and swinging guide wheels for easy entry into vehicles.
- Dual Linkage Cylinder: Smooth, alternating locking and lifting for safety and stability.
- Electric Lift Motor (12V/0.8kW): Delivers consistent, energy-efficient lifting power.
- Built for Mobility: Designed for delivery trucks, warehouses, and tight spaces.
Maximize your delivery and storage efficiency with the SESL0515 — the perfect blend of innovation, convenience, and compact performance from Sumachay Lifts.
Learn more about our 1-Year Warranty and Service Support.
Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | SESL0515 (SCDS0515) | |
| Power Type | Electric (Self-Lifting) | |
| Operation Type | Walkie / Standing | |
| Load Capacity | kg | 500 |
| Load Centre | mm | 400 |
| Lifting Type | Electric | |
| Material | Nylon / PU | |
| Wheelbase | mm | 850 |
| Net Weight | kg | 235 |
| Wheels / Tyres | ||
| Front Wheel Base | mm | 380 |
| Rear Wheel Base | mm | 672 |
| Steering / Bearing / Balance Wheel Quantity | 2 / 2 / 6 | |
| Bearing Wheel Size | mm | Φ80×50 |
| Steering Wheel Size | mm | Φ100×50 |
| Balance Wheel Size | mm | Φ40×30 |
| Training Wheel Size | mm | Φ30×30 |
| Dimensions | ||
| Minimum Fork Height | mm | 90 |
| Maximum Fork Height | mm | 1500 |
| Fork Outside Width | mm | 540 |
| Fork Inside Width | mm | 220 |
| Fork Length | mm | 1150 |
| Single Fork Size (e/s) | mm | 160 × 60 |
| Overall Length | mm | 1555 |
| Overall Width | mm | 790 |
| Overall Height | mm | 1817 |
| Height with Folded Shelf | mm | 3270 |
| Minimum Turning Radius | mm | 1120 |
| Performance | ||
| Lifting Speed (Laden/Unladen) | mm/s | 70 / 100 |
| Lowering Speed (Laden/Unladen) | mm/s | 100 / 80 |
| Lift Motor Power | V/kW | 12 / 0.8 |
| Drive | ||
| Battery Capacity | V/Ah | 12 / 33 |
| Battery Weight (±5%) | kg | 10 |
| Other | ||
| Noise Level | dB(A) | ≤70 |
| Application | Delivery Vehicles, Small Warehouses, Logistics | |
| Warranty | 1-Year Limited Manufacturer’s Warranty |
Warranty Information – SESL0515 Semi-Lifting Stacker
Your SESL0515 stacker includes a 12-month limited warranty starting from the date of purchase. This warranty covers repair or replacement for manufacturer defects under normal operating conditions.
Exclusions include damages due to misuse, overloading, water exposure, or lack of maintenance. Components such as wheels, fuses, and cosmetic wear are not covered.
Routine maintenance is required to maintain warranty eligibility. This includes regular battery charging, avoiding corrosive environments, and keeping the unit clean and lubricated.
If service or support is needed, please reach out to your authorized distributor or service partner.
Frequently Asked Questions
Can the SESL0515 lift itself into a delivery van?
Yes. This unit is designed to self-load into vehicles using its support leg and swing-out guide wheel, eliminating the need for tailgates or loading docks.
Is it fully electric?
No. The SESL0515 uses electric lifting, but travel is manual. This makes it more affordable and compact compared to fully electric stackers.
What kind of battery does it use?
It runs on a 12V / 33Ah battery and includes a compatible charger that plugs into a standard outlet.
Can this be used in both cold and warm environments?
Yes. The SESL0515 can operate in a variety of conditions. However, if you need equipment specifically rated for freezing temperatures, consider a lead-acid alternative with cold-weather optimization.
Do you offer spare parts or batteries?
Yes. Spare batteries, wheels, and chargers are available. Contact our team to inquire about compatible parts and accessories.
