SERT1545 - Electric Reach Stacker - 1500 kg - 4.5 meter Lifting Height
- ✔️ Lifts up to 1500kg to a height of 4500mm with telescopic fork reach.
- ✔️ Compact turning radius – ideal for narrow aisles and warehouse storage.
- ✔️ Features automatic speed reduction, emergency stop switch, and stable standing operation.
Prefer a formal quote? Get it by email.
Request a Quote
A sales representative will contact you shortly.
Fast Shipping
Satisfaction Guaranteed
1 Year Warranty

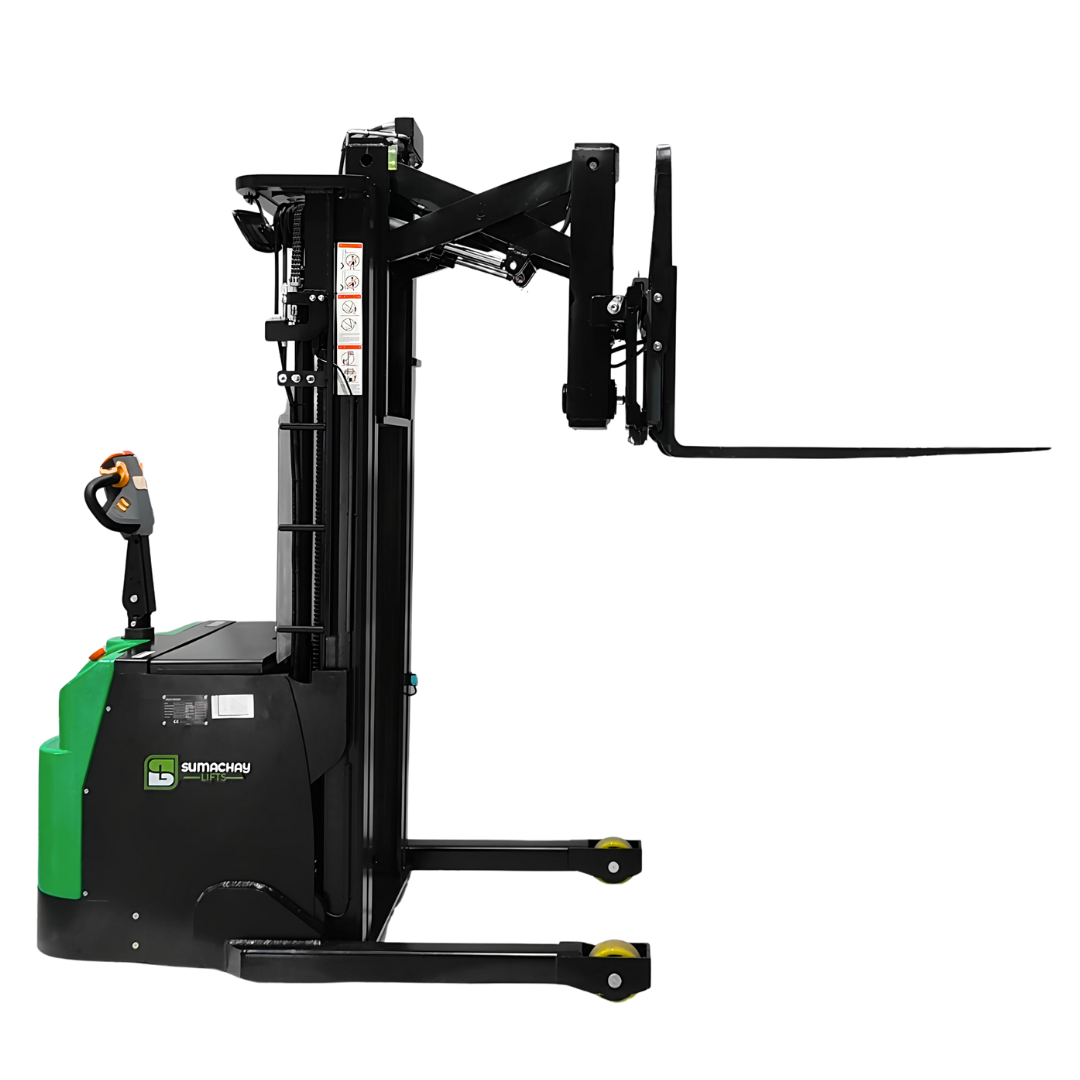

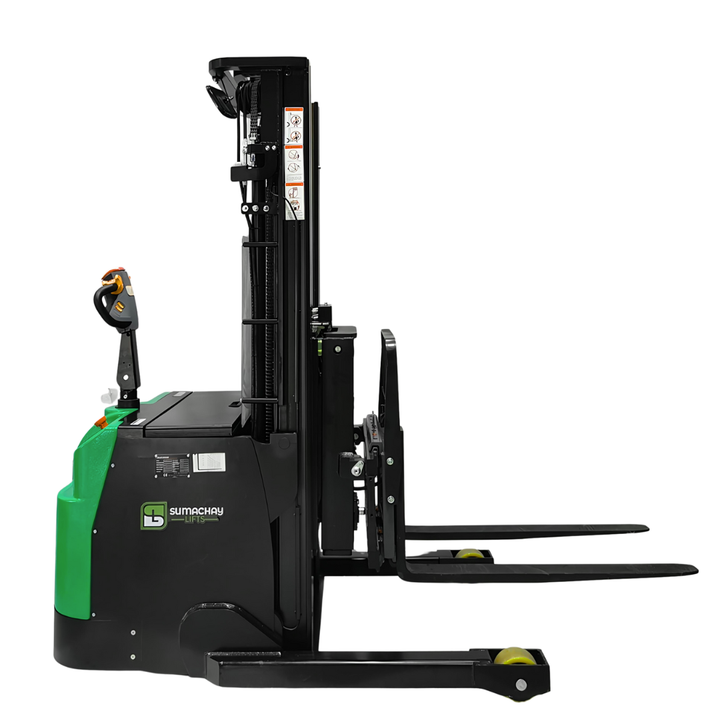

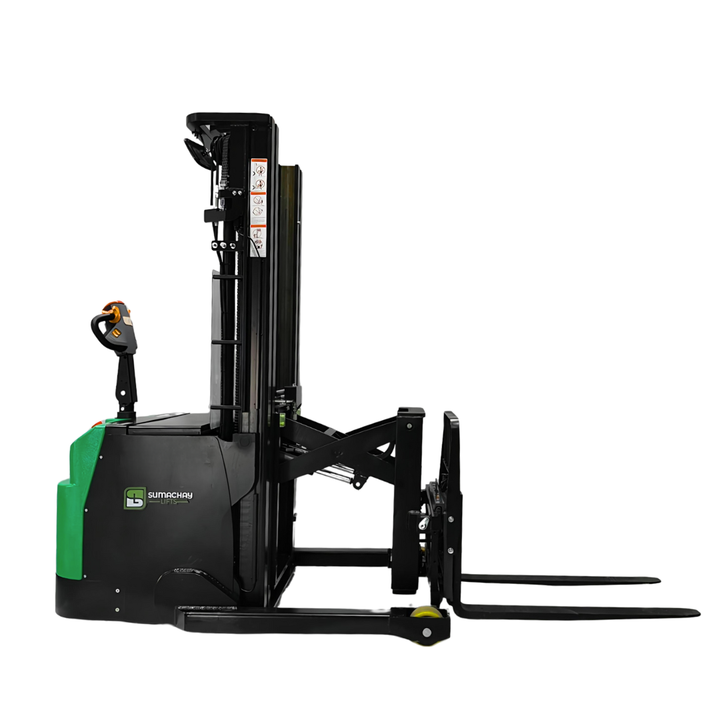

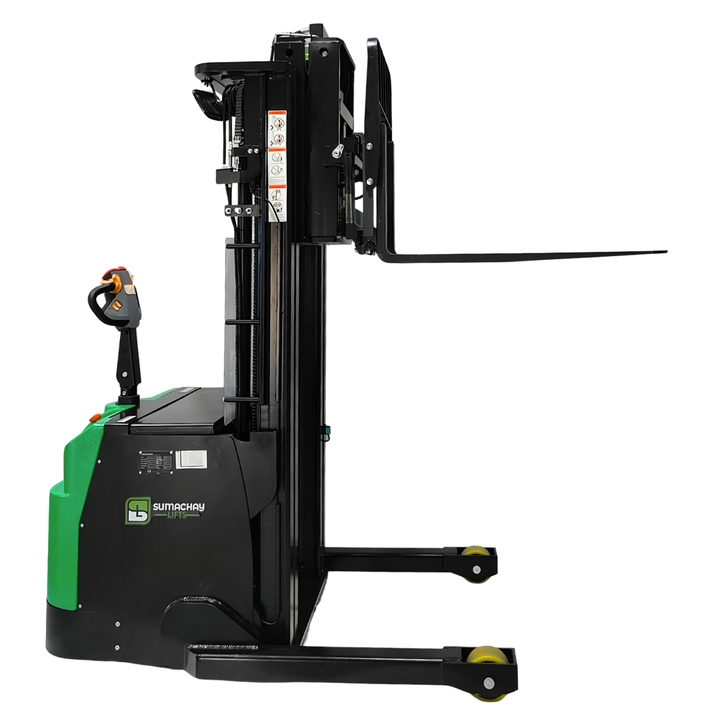

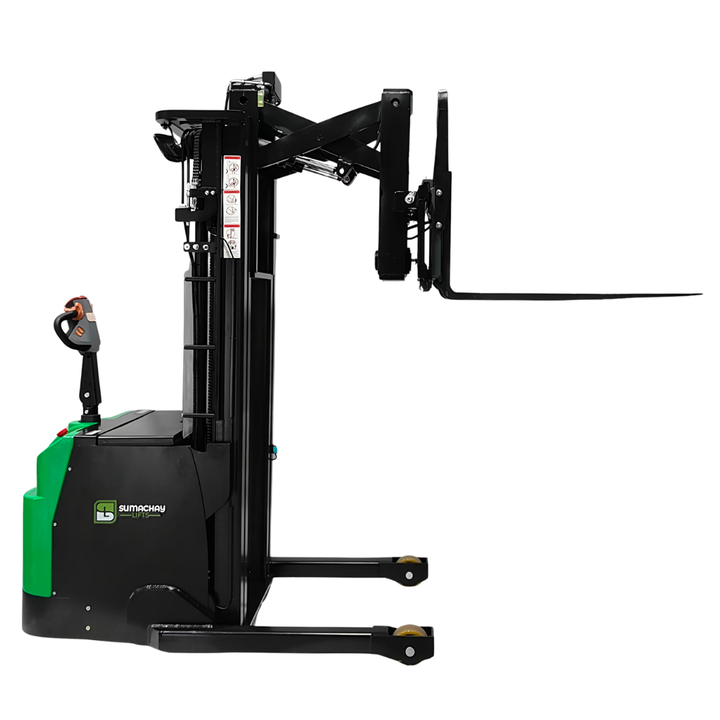

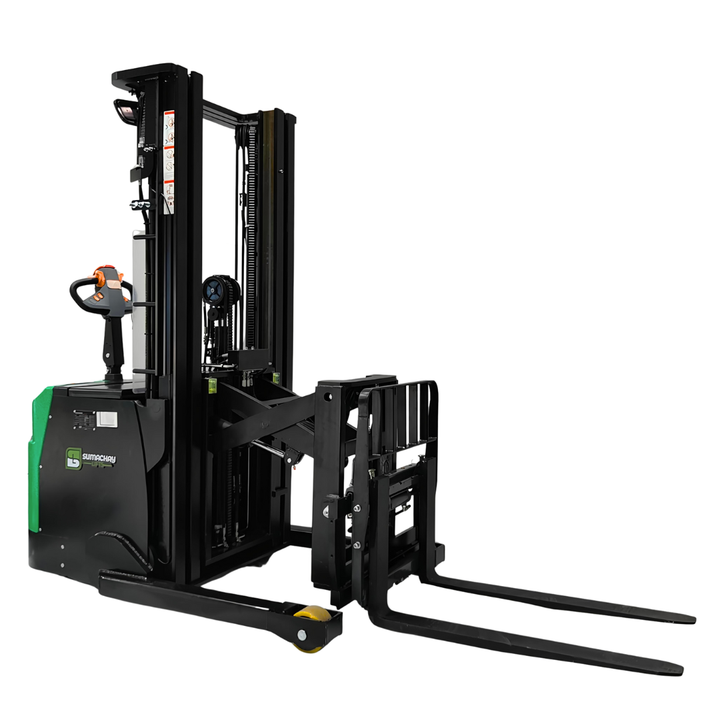

Introducing Sumachay’s SERT1545 Electric Reach Stacker – Advanced Reach and Stability for Modern Warehouses
Engineered for precision lifting and effortless control, the SERT1545 Standing Electric Reach Stacker is built to move heavy loads of up to 1500kg to a height of 4500mm. Its electric shear-forward device allows the forks to telescope in and out without moving the mast—making it perfect for narrow aisle operations and confined storage environments.
With a compact design, smooth acceleration, and intelligent safety controls, the SERT1545 ensures reliable stacking, excellent stability, and safe operation in high-density warehouse applications.
Key Features:
- Shear Forward Device: Allows the forks to telescope in and out without moving the mast—ideal for precise load positioning.
- Compact Turning Radius: Designed for narrow aisles and confined warehouse spaces.
- Stable Operation: Smooth fork expansion with no impact during movement for enhanced load stability.
- Strong Build Quality: Reinforced legs, sturdy frame, and durable mast for long-lasting performance.
- Automatic Speed Reduction: When lifting to a certain height, the stacker automatically slows down to ensure operator safety.
- Lifting Limit Function: Automatically stops the forks smoothly at maximum height to prevent over-travel and reduce energy waste.
- Emergency Stop Switch: Instantly cuts off power in case of danger, ensuring safety for both operator and equipment.
- High-Performance Drive System: Provides strong torque, smooth power delivery, and responsive control for efficient load handling.
- Long Battery Life: Optimized electrical system ensures extended operation time with reduced energy loss.
- Standing Operation: Ergonomic standing design reduces operator fatigue and enhances visibility during stacking tasks.
Upgrade your warehouse efficiency with the Sumachay SERT1545 Electric Reach Stacker — the perfect combination of reach, stability, and intelligent performance for professional material handling.
For more details, warranty, and after-sales support, visit our Service & Warranty page.
Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | SERT1545 | |
| Power Unit | Electric | |
| Operation | Standing-on | |
| Rated Load Capacity | kg | 1500 |
| Load Centre | mm | 500 |
| Axle Centre to Fork Face | mm | 350 |
| Wheelbase | mm | 1456 |
| Service Weight (with Battery) | kg | 2500 |
| Wheels / Tyres | ||
| Wheel Type | Polyurethane | |
| Driving Wheel Size (Φ×w) | mm | Φ250×75 |
| Bearing Wheel Size (Φ×w) | mm | Φ150×82 |
| Additional Wheel Size (Φ×w) | mm | Φ149×60 |
| Wheels, Number Front/Rear (x=driven) | 1,4/2 | |
| Track Width (Front) | mm | 620 |
| Track Width (Rear) | mm | 984 |
| Dimensions | ||
| Mast/Fork Carriage Tilt (Forward/Backward) | ° | 3/5 |
| Free Lift | mm | 2220 |
| Lift Height | mm | 1310 |
| Height of Mast (Extended) | mm | 4500 |
| Height of Seat/Stand-on Platform | mm | 5425 |
| Overall Height (with Handle) | mm | 1050/1450 |
| Lowered Fork Height | mm | 40 |
| Overall Length | mm | 2375 (950) |
| Length to Fork Face | mm | 1400 |
| Overall Width | mm | 896 / 1113 |
| Fork Dimensions (s/e/l) | mm | 35 / 100 / 950 |
| Fork Width Adjustment | mm | 200 - 840 |
| Forward Reach Distance | mm | 500 |
| Minimum Ground Clearance | mm | 55 |
| Aisle Width (Pallet 1000x1200 across forks) | mm | 2850 |
| Aisle Width (Pallet 800x1200 along forks) | mm | 2905 |
| Minimum Turning Radius | mm | 1765 |
| Performance | ||
| Travel Speed (Laden/Unladen) | km/h | 5.2 / 5.5 |
| Lifting Speed (With/Without Load) | mm/s | 100 / 150 |
| Lowering Speed (With/Without Load) | mm/s | 170 / 220 |
| Forward Speed (With/Without Load) | mm/s | 70 / 60 |
| Maximum Climbing Ability (With/Without Load) | % | 3 / 6 |
| Drive | ||
| Service Brake | Electromagnetic | |
| Drive Motor Power (60 min rating) | kW | 1.5 |
| Lift Motor Power (S3 15%) | kW | 4.5 |
| Battery Voltage / Capacity | V/Ah | 24 / 350 |
| Battery Weight (±5%) | kg | 320 |
| Other | ||
| Drive Control Type | AC | |
| Noise Level at Operator’s Ear | dB(A) | ≤70 |
| Warranty | 1-Year Limited Manufacturer’s Warranty |
Warranty Information for Sumachay Lifts
Your SERT1545 Electric reach stacker comes with a 12-month warranty that begins on the date of purchase, as indicated on your invoice. This warranty covers comprehensive repairs in the event of a legitimate fault or breakdown. However, it does not extend to issues arising from normal wear and tear, accidents, negligence, or improper use.
Please note that this warranty is voided if the unit is used in environments where it is submerged in water or exposed to fluids or chemicals.
To ensure the longevity and reliability of your electric pallet lift, we strongly recommend adhering to routine maintenance. This includes regular cleaning, proper lubrication, and appropriate storage.
If you have any questions about your warranty or require service, please contact our customer support team for further assistance.
