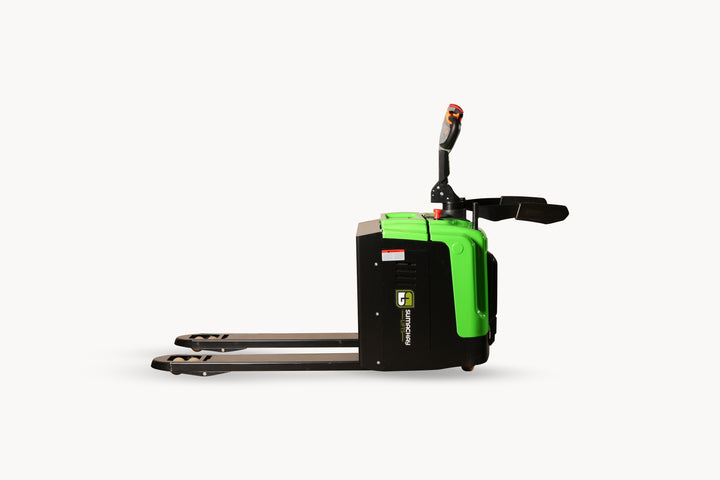

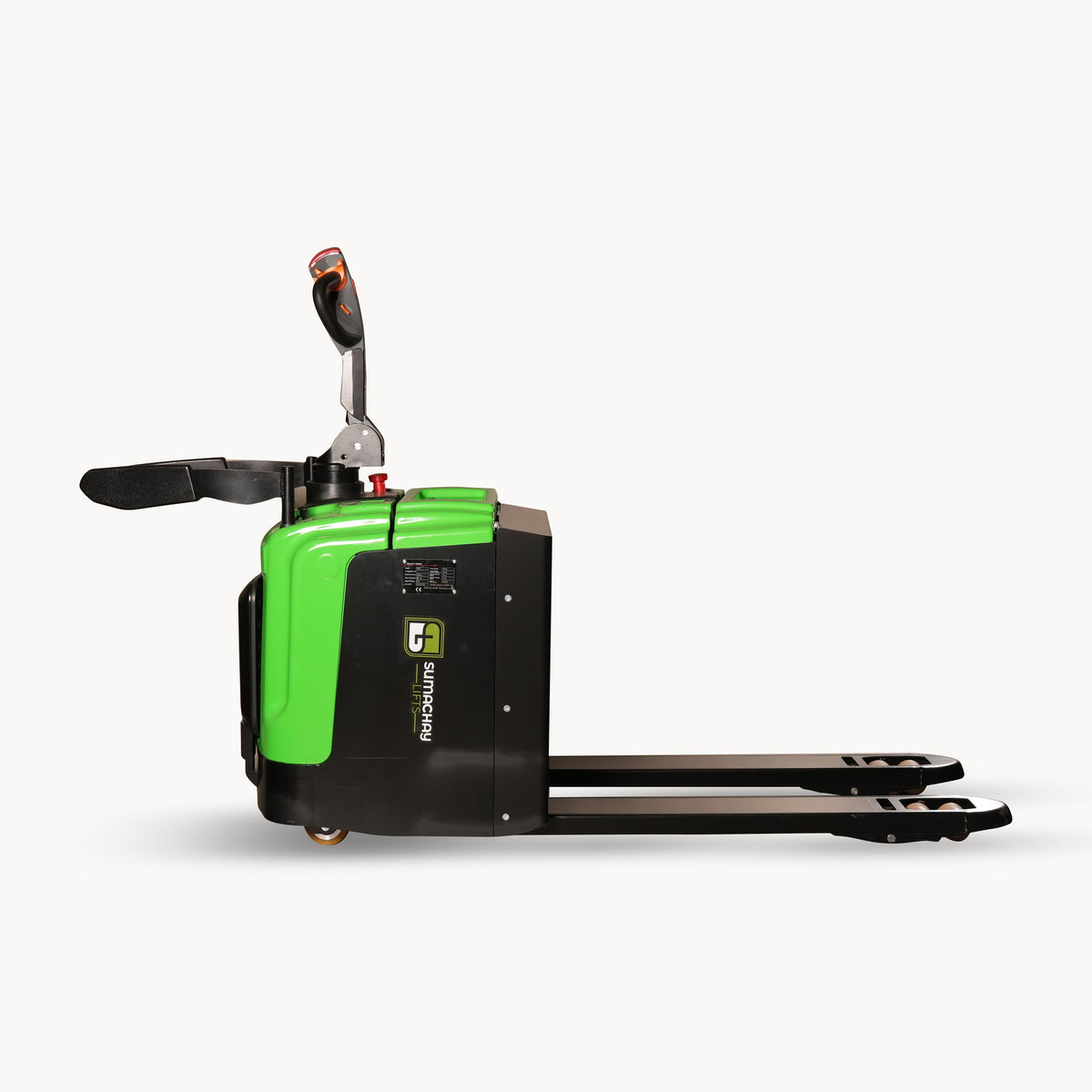

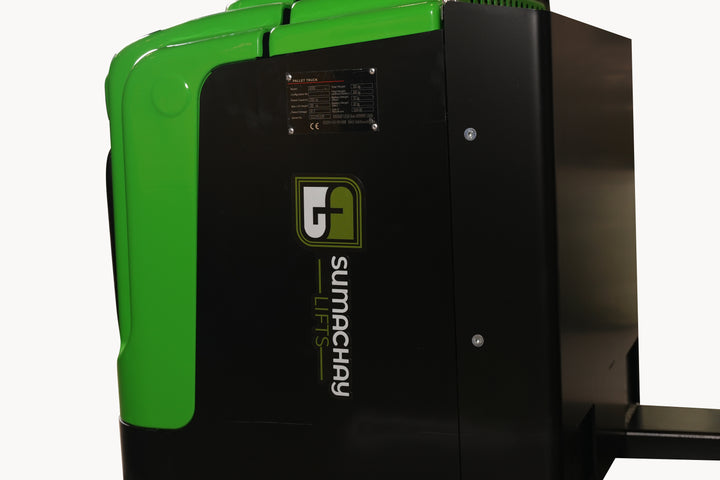

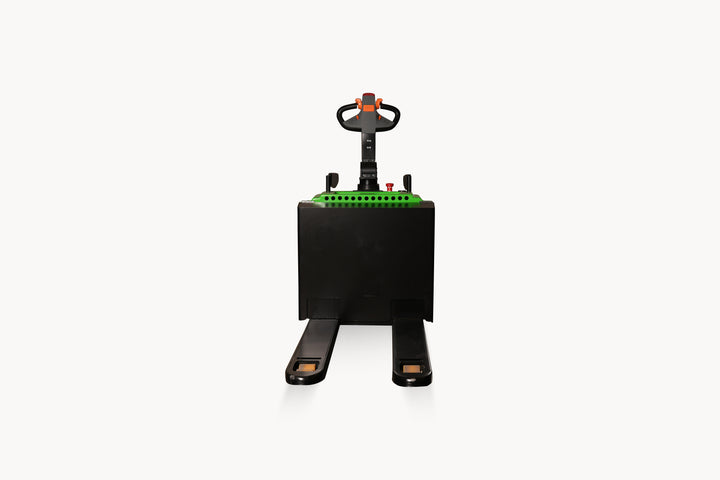

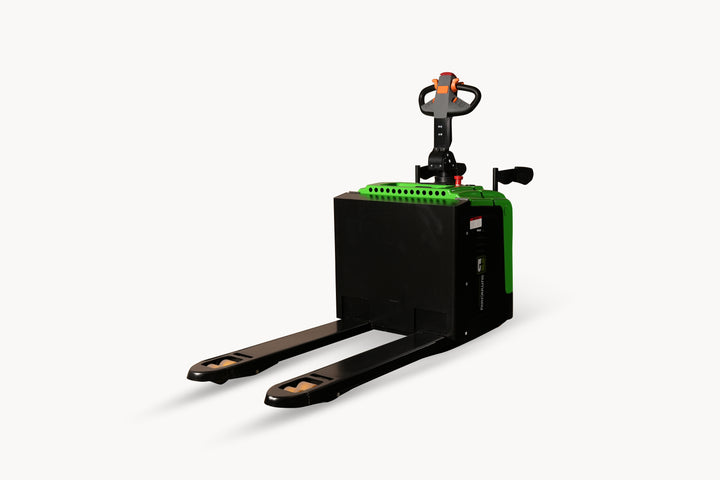

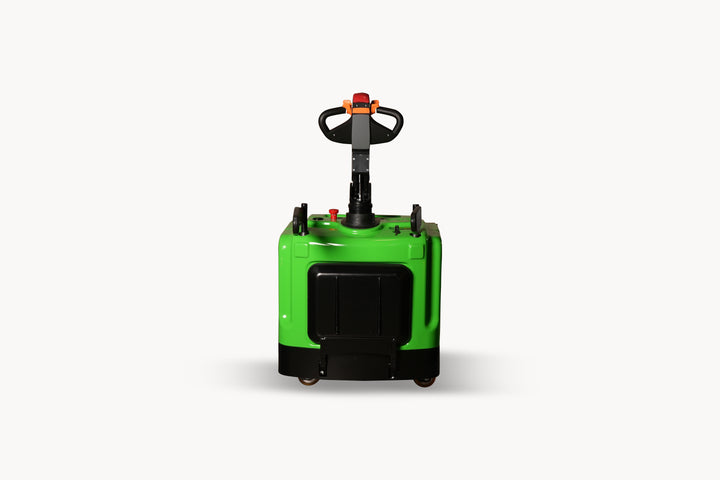

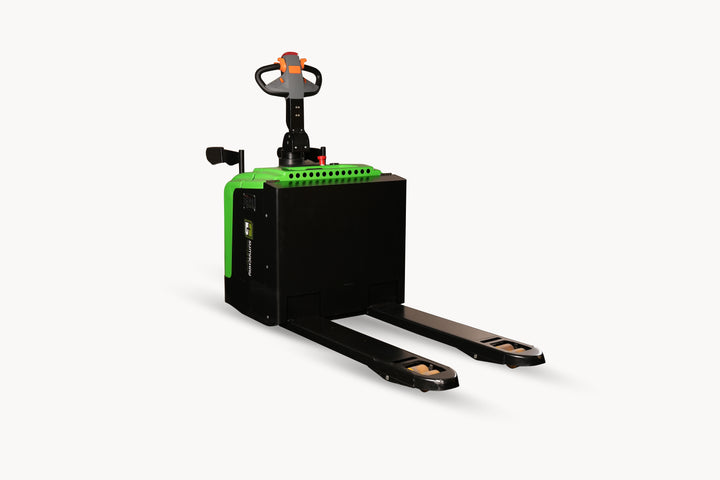

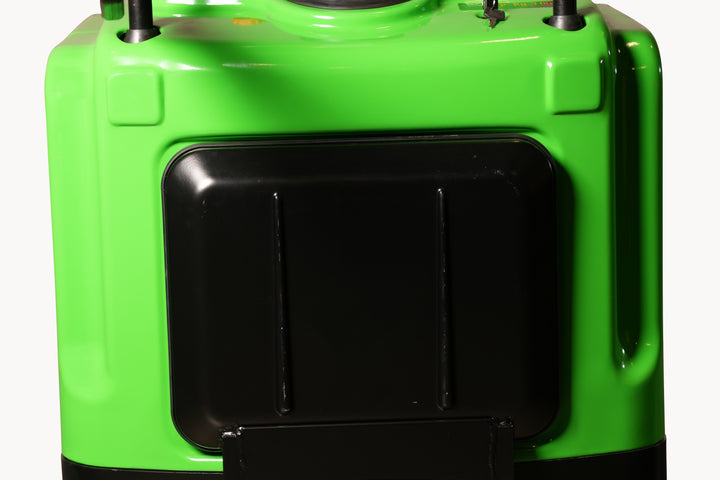

SER20 Heavy-Duty Ride-On Electric Pallet Jack – 2 Ton Lithium-Ion Power Lift
- ✔️ 2000kg ride-on electric pallet truck for heavy-duty warehouse handling.
- ✔️ Electric power steering, AC controller, and side-pull battery system.
- ✔️ Central floating bracket ensures smooth, stable, and safe operation.
Prefer a formal quote? Get it by email.
Request a Quote
A sales representative will contact you shortly.
Fast Shipping
Satisfaction Guaranteed
1 Year Warranty

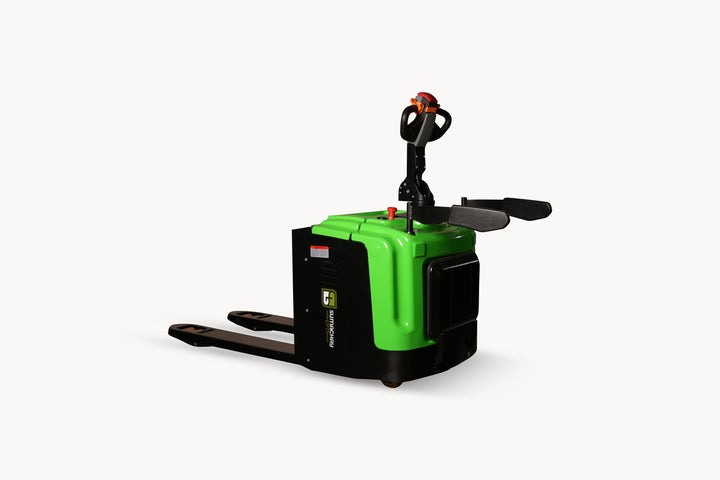

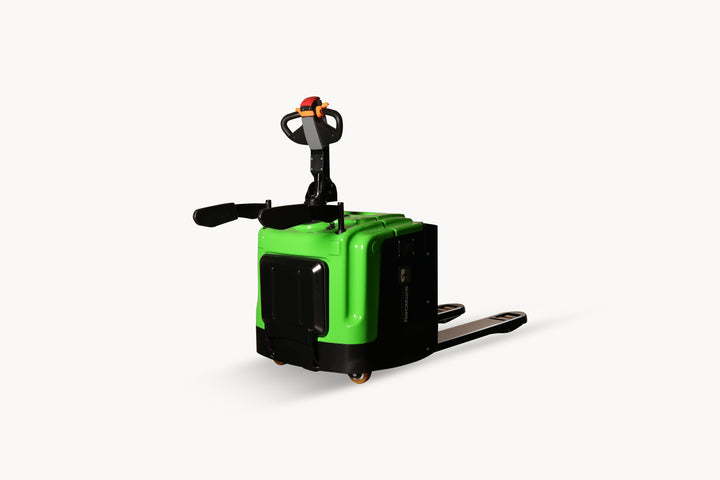

Experience powerful and stable pallet transport with Sumachay’s SER20 Electric Ride-On Pallet Truck — engineered for productivity, comfort, and precision.
The SER20 is built with a central floating bracket for maximum stability, ensuring smooth travel and balanced handling even under heavy loads. Designed for operators who demand efficiency, it combines electric ride-on comfort with intelligent braking and steering systems for effortless maneuverability.
Equipped with a high-performance AC drive motor and a quick-change side-pull battery, this pallet truck minimizes downtime and maximizes output — making it the ideal solution for large warehouses, production floors, and logistics hubs.
Key Features:
- Central Floating Bracket: Guarantees smooth operation and balanced vehicle stability under all conditions.

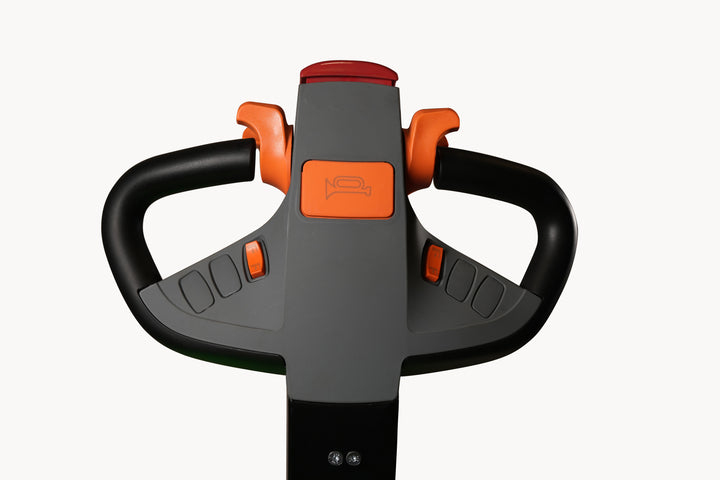

- Brake-Electric System: Vehicle stops instantly when the handle is released or fully pressed, ensuring operator safety.
- Standard Electric Power Steering: Smooth and responsive steering for enhanced handling comfort.
- Imported AC Controller: Offers unmatched speed precision and energy efficiency.
- Boost Cylinder: Provides fast acceleration, higher power output, and prevents overload slippage.
- Side Pull Battery System: Enables quick battery replacement for continuous, uninterrupted operation.
Powerful, ergonomic, and efficient — the SER20 Electric Ride-On Pallet Truck sets a new standard for productivity and reliability in industrial material handling.
Upgrade your workflow with Sumachay’s dependable electric pallet technology and 1-Year Warranty support.
Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | SL20GA | |
| Power Unit | Electric | |

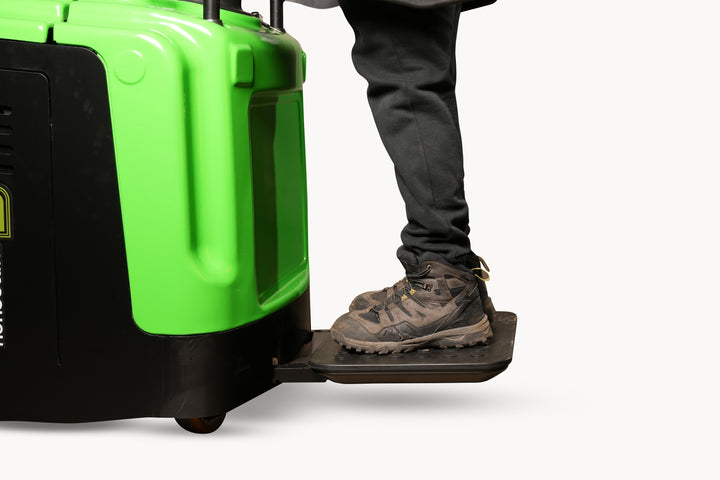

| Operation Type | Standing On (Ride-On) | |
| Rated Traction Weight | kg | 2000 |
| Load Centre | mm | 600 |
| Axle Centre to Fork Face | mm | 1039 |
| Wheel Base | mm | 1560 |
| Service Weight (with Battery) | kg | 810 |
| Wheels / Tyres | ||
| Wheel Type | PU | |
| Driving Wheel Size | Φ×w(mm) | Φ250×75 |
| Bearing Wheel Size | Φ×w(mm) | Φ80×80 |
| Additional Wheel Size | Φ×w(mm) | Φ115×55 |
| Number of Wheels (front/rear) | 1x+2/4 | |
| Track Width (Front) | mm | 580 |
| Track Width (Rear) | mm | 355/500 |
| Dimensions | ||
| Lift Height | mm | 200 |
| Overall Height (with handle) | mm | 1150/1455 |
| Lowered Height | mm | 85 |
| Overall Length | mm | 1910 (1985) |
| Length to Fork Face | mm | 756 |
| Overall Width | mm | 808 |

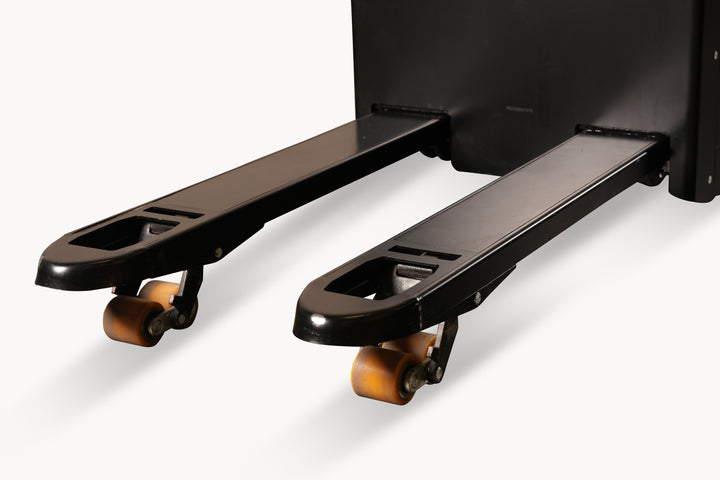

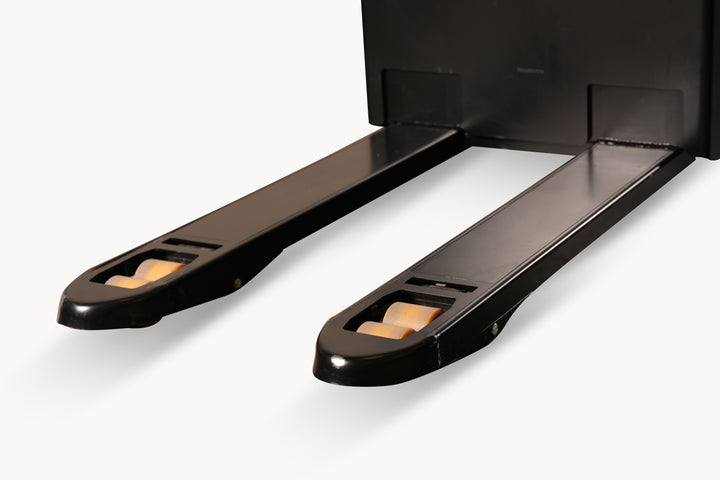

| Fork Dimensions (s/e/l) | mm | 50/185/1150 (1220) |
| Width of Forks | mm | 540 / 685 |
| Minimum Ground Clearance | mm | 25 |
| Aisle Width (1000×1200 pallet, across forks) | mm | 2180 |
| Aisle Width (800×1200 pallet, along forks) | mm | 2380 |
| Minimum Turning Radius | mm | 1746 |
| Performance | ||
| Travel Speed (laden/unladen) | km/h | 5.2 / 5.5 |
| Lifting Speed (with/without load) | mm/s | 22 / 28 |
| Lowering Speed (with/without load) | mm/s | 30 / 20 |
| Maximum Climbing Ability (laden/unladen) | % | 6 / 8 |
| Service Brake | Electromagnetic | |
| Drive | ||
| Drive Motor (60 min rating) | kW | 1.5 |
| Lift Motor Rating (S3 15%) | kW | 0.8 |
| Battery Voltage / Capacity | V/Ah | 24 / 210 |
| Battery Weight (±5%) | kg | 190 |
| Other | ||
| Drive Control Type | AC | |
| Noise Level at Operator’s Ear | dB(A) | ≤70 |
| Type of Steering | Electric | |
| Warranty | 1-Year Manufacturer Warranty | |
Warranty
Every SER20 Ride-On Electric Pallet Jack is backed by a 12-month limited warranty from the date of purchase. This warranty covers manufacturing defects and functional failures under normal use.
What's Covered: Repair or replacement of defective components including drive system, control unit, battery, and lift motor—provided the equipment has been used appropriately and maintained as per guidelines.
What's Not Covered: Normal wear and tear (e.g., wheels, brushes, fuses), damage caused by misuse, accidents, overloading, unauthorized repairs, or exposure to corrosive environments.
Support: Customers may request warranty service through approved service partners or by shipping the unit to an authorized Sumachay repair center. Service must be scheduled and authorized in advance.
